One end of a uniform 4.00 -m-long rod of weight $F_{g}$ is supported by a cable. The other end rests against the wall, where it is held by friction, as shown in Figure Pl2.19. The coefficient of static friction between the wall and the rod is $\mu_{s}=0.500$ . Determine the minimum distance $x$ from point $A$ at which an additional object, also with the same weight $F_{g},$ can be hung without causing the rod to slip at point $A .$

Key Concepts

Frictional Forces

Frictional forces, particularly static friction, oppose the initiation of motion between contacting surfaces. In the context of equilibrium problems, static friction ensures that a body remains stationary up to its maximum frictional force, which is proportional to the normal force and characterized by the coefficient of static friction. This concept is crucial when analyzing situations where friction contributes to maintaining equilibrium.

Free-Body Diagram

A free-body diagram is a simplified representation of an object and all the external forces acting on it, isolated from its surroundings. The diagram is an essential tool for visualizing and solving static equilibrium problems, helping to correctly identify and balance the forces and torques involved.

Static Equilibrium

Static equilibrium is the condition of a body where the net force and net torque acting on it are zero, ensuring the body remains at rest. This principle is used to analyze forces and moments in systems where objects are subjected to multiple forces, allowing the setup of simultaneous equations to solve for unknown quantities such as reaction forces or locations of applied loads.

Torque (Moment) Equilibrium

Torque equilibrium involves ensuring that the sum of all moments (torques) about any point is zero. This concept is critical in problems involving beams, levers, or rods where forces are causing rotations about a pivot point. By taking moments about a strategic point, one can often eliminate unknown reaction forces and simplify the process of finding other unknowns.

Transcript

00:01 For this problem on the topic of static equilibrium and elasticity, we have given a diagram which shows a uniform 4 meter long rod with a weight f being supported by a cable.

00:13 Now the other end rest against a wall where it is held by friction.

00:18 So the whole system is in equilibrium.

00:20 If we are given the coefficient of static friction between the wall and the rod, we want to calculate the minimum distance from point a to which an additional object with the same.

00:30 Weight can be hung without causing the rod to slip at point a.

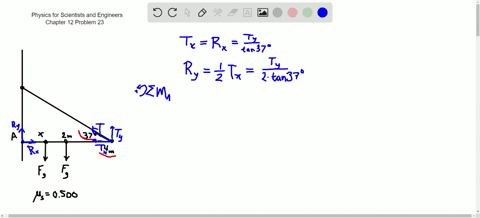

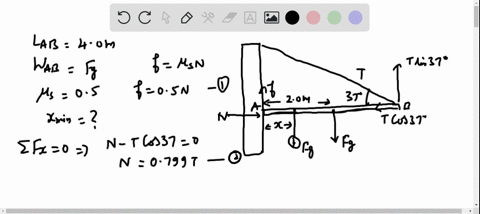

00:34 So if we look at the diagram, we have the normal force of the wall exerted onto the rod to be in, the frictional force acting vertically upwards, f, the weight of the center of the rod fg, which acts two meters from either end of the rod, and the weight of the object that is hung on the rod fg as well.

01:01 So the distance from the wall to the object is x, in that distance we want to minimize.

01:08 And we also have the cable, which applies a tension t at an angle of 37 degrees to the rod.

01:17 Now, when x is equal to xmin, the rod is on the verge of slipping.

01:21 So the frictional force is a maximum, and that's the maximum static friction fs max which is equal to the coefficient of static friction times the normal force n which keeps the system in equilibrium so that we know this is 0 .5 times the normal force n now we can use the fact that since the system is in equilibrium the sum of the forces in the x direction must equal to 0.

01:58 So it's essentially a form of newton second law.

02:02 And from this, if we look at all the forces acting on the x direction, we balance them.

02:08 To the right, we have the normal force n...
