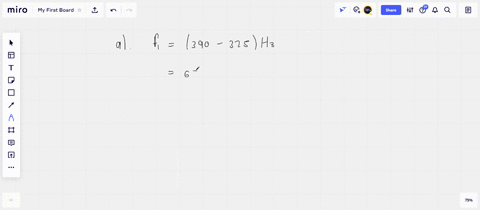

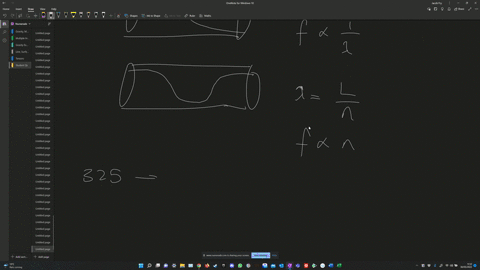

One of the harmonic frequencies of tube $A$ with two open ends is 325 Hz. The next-highest harmonic frequency is 390 $\mathrm{Hz}$ . (a) What harmonic frequency is next highest after the harmonic frequency 195 $\mathrm{Hz}$ ? (b) What is the number of this next-highest harmonic? One of the harmonic frequencies of tube $B$ with only one open end is 1080 $\mathrm{Hz}$ . The next-highest harmonic frequency is 1320 $\mathrm{Hz}$ . (c) What harmonic frequency is next highest after the harmonic frequency 600 $\mathrm{Hz}$ ? (d) What is the number of this next- highest harmonic?

One of the harmonic frequencies of tube $A$ with two open ends is 325 Hz. The next-highest harmonic frequency is 390 $\mathrm{Hz}$ .
(a) What harmonic frequency is next highest after the harmonic
frequency 195 $\mathrm{Hz}$ ? (b) What is the number of this next-highest
harmonic? One of the harmonic frequencies of tube $B$ with only one open end is 1080 $\mathrm{Hz}$ . The next-highest harmonic frequency is
1320 $\mathrm{Hz}$ . (c) What harmonic frequency is next highest after the
harmonic frequency 600 $\mathrm{Hz}$ ? (d) What is the number of this next-
highest harmonic?

Key Concepts

Resonance in Closed Tubes

In tubes that are closed at one end and open at the other, the closed end must act as a node while the open end acts as an antinode. This boundary condition restricts the possible standing wave patterns such that only odd multiples of the quarter wavelength fit into the tube. Consequently, only odd harmonics are present, and the resonant frequency pattern is different from that of open tubes.

Resonance in Open Tubes

For tubes open at both ends, both ends are antinodes because the air is free to move. This creates a situation where the standing wave fits an integer number of half wavelengths into the length of the tube. The resonant frequencies are then integer multiples of the fundamental frequency, which is determined by the speed of sound and the length of the tube.

Harmonics

Harmonics refer to the series of frequencies at which an object or system naturally vibrates when excited. In the context of sound and tubes, harmonics are integer multiples (or, for closed tubes, odd multiples) of a fundamental frequency, which is the lowest frequency produced by the system. Understanding harmonics is crucial for explaining how musical tones are produced and how their distinct timbres arise.

Standing Waves in Tubes

Standing waves occur when two waves of the same frequency and amplitude traveling in opposite directions interfere, creating fixed points known as nodes and points of maximum oscillation called antinodes. In tubes, these standing waves correspond to the resonant frequencies or harmonics, and their formation depends on the boundary conditions at the ends of the tube.
