Outdoor air (cp=1.005 kJ / kg · ^∘ C) is to be preheated by hot exhaust gases in a crossflow he

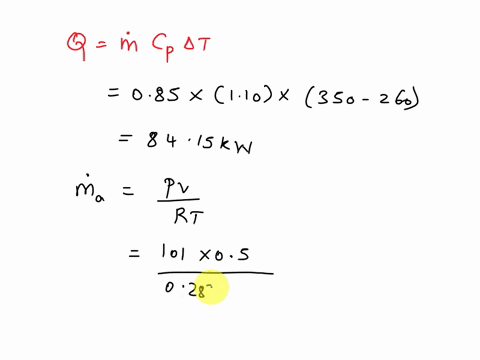

step 1 Hi friends, the rate of heat transfer is given by Q. is equal to m .c t1 minus t2 of guess subst

Outdoor air (cp=1.005 kJ / kg · ^∘ C) is to be preheated by...

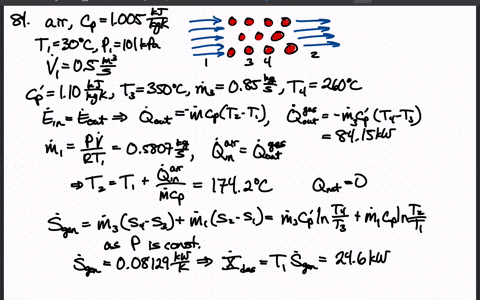

Outdoor air $\left(c_{p}=1.005 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}\right)$ is to be preheated by hot exhaust gases in a crossflow heat exchanger before it enters the furnace. Air enters the heat exchanger at $101 \mathrm{kPa}$ and $30^{\circ} \mathrm{C}$ at a rate of $0.5 \mathrm{~m}^{3} / \mathrm{s}$. The combustion gases $\left(c_{p}=\right.$ $1.10 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}$ ) enter at $350^{\circ} \mathrm{C}$ at a rate of $0.85 \mathrm{~kg} / \mathrm{s}$ and leave at $260^{\circ} \mathrm{C}$. Determine the rate of heat transfer to the air and the rate of exergy destruction in the heat exchanger.

Outdoor air $\left(c_{p}=1.005 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}\right)$ is to be preheated
by hot exhaust gases in a crossflow heat exchanger before it enters the furnace. Air enters the heat exchanger at $101 \mathrm{kPa}$ and $30^{\circ} \mathrm{C}$ at a rate of $0.5 \mathrm{~m}^{3} / \mathrm{s}$. The combustion gases $\left(c_{p}=\right.$ $1.10 \mathrm{~kJ} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}$ ) enter at $350^{\circ} \mathrm{C}$ at a rate of $0.85 \mathrm{~kg} / \mathrm{s}$ and leave
at $260^{\circ} \mathrm{C}$. Determine the rate of heat transfer to the air and the rate of exergy destruction in the heat exchanger.

Key Concepts

Energy Balance in Heat Exchangers

This concept involves applying the first law of thermodynamics to quantify the energy transfer between the hot and cold fluid streams. It requires setting up a control volume and equating the energy gained and lost by the fluids to determine the rate of heat transfer across the exchanger.

Crossflow Heat Exchanger Fundamentals

A crossflow heat exchanger is a type of heat transfer equipment where the two fluids move perpendicular to each other. Understanding its configuration is essential for accurately modeling the heat transfer process since the effectiveness and temperature profiles differ compared to other configurations like counterflow or parallel flow.

Thermodynamic Fluid Properties and Flow Rates

Properties such as specific heat capacity (cp) and the differences between mass flow rate and volumetric flow rate play a crucial role in energy calculations. These properties enable the calculation of sensible heat transfer by relating temperature changes to the energy content of the fluid streams.

Exergy Analysis in Thermal Systems

Exergy analysis examines the quality or usefulness of energy within a system by assessing how much of that energy can be converted into useful work. This approach goes beyond energy conservation by considering the second law of thermodynamics to identify potential improvements in system performance.

Exergy Destruction and Irreversibility

Exergy destruction quantifies the irreversibilities or losses in a process, typically due to factors like friction, heat losses, and mixing. It is calculated from the entropy generation in the system and offers insights into how much potential work is wasted during the heat transfer process, thereby guiding efficiency improvements.
