Plot 1 in Fig. 25-32 a gives the charge q that can be stored...

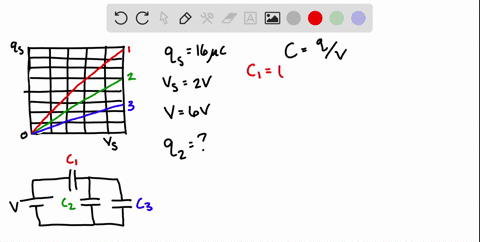

Plot 1 in Fig. $25-32 a$ gives the charge $q$ that can be stored on capacitor 1 versus the electric potential $V$ set up across it. The vertical scale is set by $q_{s}=16.0 \mu \mathrm{C}$ , and the horizontal scale is set by $V_{x}=2.0 \mathrm{V} .$ Plots 2 and 3 are similar plots for capacitors 2 and 3, respectively. Figure $25-32 b$ shows a circuit with those three capacitors and a 6.0 $\mathrm{V}$ battery. What is the charge stored on capacitor 2 in that circuit?

Plot 1 in Fig. $25-32 a$ gives the charge $q$ that can be stored on capacitor 1 versus the electric potential $V$ set up across it. The
vertical scale is set by $q_{s}=16.0 \mu \mathrm{C}$ , and the horizontal scale is set
by $V_{x}=2.0 \mathrm{V} .$ Plots 2 and 3 are similar plots for capacitors 2 and 3, respectively. Figure $25-32 b$ shows a circuit with those three
capacitors and a 6.0 $\mathrm{V}$ battery. What is the charge stored on
capacitor 2 in that circuit?

Key Concepts

Capacitance

Capacitance is the ability of a capacitor to store electric charge per unit voltage applied. It is quantified by the relationship Q = CV, where Q is the charge stored, C is the capacitance, and V is the voltage across the capacitor. This concept underlies how capacitors function in circuits, determining their energy storage and response to applied potential differences.

Charge-Voltage Relationship

The charge-voltage relationship explains the direct proportionality between the charge stored on a capacitor and the voltage across it. This relationship is typically linear for ideal capacitors and is graphically represented as a straight line, where the slope of the line corresponds to the capacitance. Understanding this relationship is crucial for interpreting scaled plots that relate stored charge and applied voltage.

Scaling of Graphical Data

Interpreting scaled graphs involves converting the graphical representation into actual physical quantities. In capacitor analysis, plots that display charge versus voltage use defined scale factors, which allow one to deduce properties like capacitance from the slope of the line. This method provides an experimental way to determine how much charge a capacitor stores for a given applied voltage.

Circuit Analysis with Multiple Capacitors

When multiple capacitors are connected in a circuit with an external voltage source, analyzing the voltage distribution and charge storage requires understanding series and parallel configurations. In series arrangements, the charge on each capacitor is the same, while in parallel arrangements, the voltage across each capacitor is identical. This concept is essential for determining the charge on a specific capacitor within a complex circuit.
