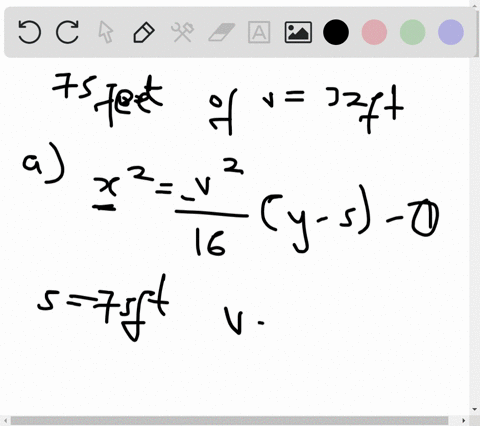

Projectile Motion Consider the path of a projectile projected horizontally with a velocity of $v$ feet per second at a height of $s$ feet, where the model for the path is $x^{2}=-\frac{1}{16} v^{2}(y-s) .$ In this model, air resistance is disregarded, $y$ is the height (in feet) of the projectile, and $x$ is the horizontal distance (in feet) the projectile travels. A ball is thrown from the top of a 75 -foot tower with a velocity of 32 feet per second. (a) Find the equation of the parabolic path. (b) How far does the ball travel horizontally before striking the ground?

Projectile Motion Consider the path of a projectile projected horizontally with a velocity of $v$ feet per second at a height of $s$ feet, where the model for the path is $x^{2}=-\frac{1}{16} v^{2}(y-s) .$ In this model, air resistance is disregarded, $y$ is the height (in feet) of the projectile, and $x$ is the horizontal distance (in feet) the projectile travels. A ball is thrown from the top of a 75 -foot tower with a velocity of 32 feet per second.
(a) Find the equation of the parabolic path.
(b) How far does the ball travel horizontally before striking the ground?

Key Concepts

Elimination of the Time Parameter

The elimination of the time parameter is a technique used to derive a relationship between the horizontal and vertical positions of a projectile. By expressing time from one of the component equations and substituting it into the other, one can obtain a direct equation for the projectile’s trajectory, typically resulting in a parabolic equation.

Horizontal and Vertical Component Analysis

In the study of projectile motion, the initial velocity is decomposed into horizontal and vertical components. The horizontal component remains constant, as there is no horizontal acceleration (when air resistance is ignored), while the vertical component is subject to constant acceleration due to gravity. This separation allows for independent analysis of the motion in each direction.

Quadratic Equations in Kinematics

Quadratic equations naturally arise in the analysis of projectile problems when solving for quantities such as time of flight or horizontal range. When the vertical position of the projectile is set equal to a particular value (for example, the ground level), solving the resulting quadratic equation yields the time points at which the projectile reaches that height, from which other motion characteristics can be computed.

Projectile Motion

Projectile motion refers to the motion of an object under the influence of gravity, where the only acceleration acting is due to gravity. This concept assumes that the object is launched with an initial velocity and follows a curved path (trajectory) under a constant downward acceleration, typically ignoring air resistance.

Parabolic Trajectory

A parabolic trajectory describes the curved path of a projectile when it is launched near the surface of a planet with a uniform gravitational field. The parabolic shape arises because the horizontal motion occurs at a constant velocity, while the vertical motion is uniformly accelerated due to gravity.
