Questions 8-10 The diagram below depicts a projectile...

Questions $8-10$ The diagram below depicts a projectile launched from point $A$ with a speed $v$ at angle of $\theta,$ above the horizontal. The projectile reaches its maximum height, $h,$ at point $B .$ The projectile impacts the ground at point $C,$ achieving a final range of $x .$ Points $A$ and $C$ are at the same height. The total time of flight from point $A$ to point $C$ is $t$ seconds. Which of the statements below is true regarding the acceleration acting on the projectile during its flight from point $A$ to point $C$ ? (A) The acceleration decreases from $A$ to $B$ and increases from $B$ to $C .$ (B) The acceleration increases from $A$ to $B$ and decreases from $B$ to $C$ . (C) At $B$ , the magnitude of the acceleration equals the $x$ -component of the magnitude at $A$ (D) At $C,$ the magnitude of the acceleration is the same as at $A$ but the direction is opposite. (E) The magnitude and direction of the acceleration remain constant from $A$ to $C .$

Questions $8-10$

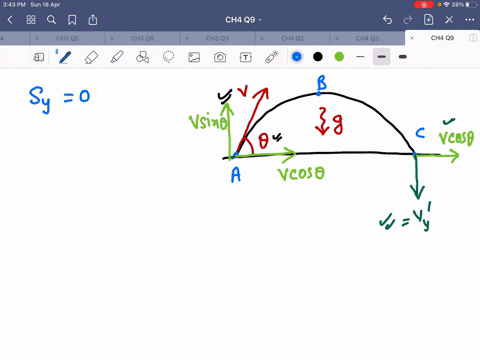

The diagram below depicts a projectile launched from point $A$ with a speed $v$ at angle of $\theta,$ above the horizontal. The projectile reaches its maximum height, $h,$ at point $B .$ The projectile impacts the ground at point $C,$ achieving a final range of $x .$ Points $A$ and $C$ are at the same height. The total time of flight from point $A$ to point $C$ is $t$ seconds.
Which of the statements below is true regarding the acceleration acting on the projectile during its flight from point $A$ to point $C$ ?
(A) The acceleration decreases from $A$ to $B$ and increases from $B$ to $C .$
(B) The acceleration increases from $A$ to $B$ and decreases from $B$ to $C$ .
(C) At $B$ , the magnitude of the acceleration equals the $x$ -component of the magnitude at $A$
(D) At $C,$ the magnitude of the acceleration is the same as at $A$ but the direction is opposite.
(E) The magnitude and direction of the acceleration remain constant from $A$ to $C .$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Vector Decomposition

Vector decomposition is the process of breaking down the initial velocity of a projectile into its horizontal and vertical components. This is crucial because it allows us to analyze the independent effects of gravity in the vertical direction and the constant velocity in the horizontal direction, thereby simplifying the explanation and computation of a projectile's flight characteristics.

Projectile Motion

Projectile motion involves the path of an object that is launched into the air and moves under the influence of gravity alone, with the horizontal and vertical motions being independent of each other. This concept is essential for analyzing the trajectory, time of flight, and range of the projectile, as it provides the foundation for understanding the behavior of objects in free-fall.

Acceleration Due to Gravity

The acceleration acting on a projectile in free-fall is due solely to gravity, which is constant in magnitude (approximately 9.8 m/s² near Earth’s surface) and always directed downward. This means that, regardless of the projectile’s position along its parabolic trajectory, the acceleration remains unchanged, making it a key factor in analyzing projectile motion.
