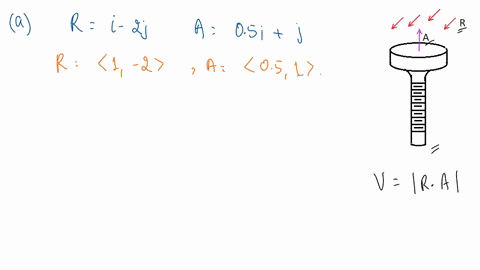

Rainfall Measurement Let the vector $\mathbf{R}$ represent the amount of rainfall, in inches, whose direction is the inclination of the rain to a rain gauge. Let the vector A represent the area, in square inches, whose direction is the orientation of the opening of the rain gauge. See the figure. The volume of rain collected in the gauge, in cubic inches, is given by $V=|\mathbf{R} \cdot \mathbf{A}|$, even when the rain falls in a slanted direction or the gauge is not perfectly vertical. Suppose that $\mathbf{R}=\langle 0.75,-1.75\rangle$ and $\mathbf{A}=\langle 0.3,1\rangle$. (a) Find $\|\mathbf{R}\|$ and $\|\mathbf{A}\|$, and interpret the meaning of each. (b) Compute $V$ and interpret its meaning. (c) If the gauge is to collect the maximum volume of rain, what must be true about $\mathbf{R}$ and $\mathbf{A}$ ? (IMAGE CANT COPY)

Rainfall Measurement Let the vector $\mathbf{R}$ represent the amount of rainfall, in inches, whose direction is the inclination of the rain to a rain gauge. Let the vector A represent the area, in square inches, whose direction is the orientation of the opening of the rain gauge. See the figure. The volume of rain collected in the gauge, in cubic inches, is given by $V=|\mathbf{R} \cdot \mathbf{A}|$, even when the rain falls in a slanted direction or the gauge is not perfectly vertical.
Suppose that $\mathbf{R}=\langle 0.75,-1.75\rangle$ and $\mathbf{A}=\langle 0.3,1\rangle$.

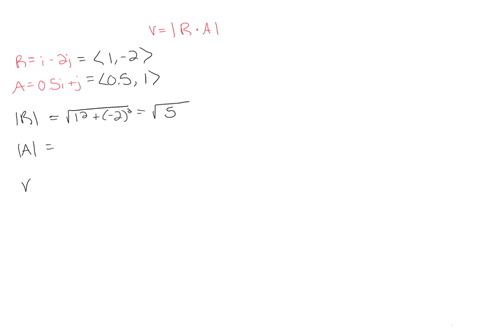

(a) Find $\|\mathbf{R}\|$ and $\|\mathbf{A}\|$, and interpret the meaning of each.
(b) Compute $V$ and interpret its meaning.
(c) If the gauge is to collect the maximum volume of rain, what must be true about $\mathbf{R}$ and $\mathbf{A}$ ?
(IMAGE CANT COPY)

Key Concepts

Vector Magnitude

The magnitude of a vector represents its length or size in the given vector space, calculated using the square root of the sum of the squares of its components. It provides a measure of how 'big' the vector is without considering its direction and is crucial in quantifying real-world quantities such as distance or force intensity.

Dot Product

The dot product is an algebraic operation that takes two equal-length sequences of numbers (usually coordinate vectors) and returns a single number. It encapsulates both the magnitudes of the vectors and the cosine of the angle between them, which allows it to represent how much one vector extends in the direction of another. This concept is essential in applications where understanding the alignment or the effective contribution of one vector relative to another is key.

Projection of a Vector

Projection involves determining the component of one vector in the direction of another vector. It is computed using the dot product, divided by the magnitude of the vector being projected onto, and then multiplied by the unit vector in that direction. This concept is fundamental in translating vector quantities into effectively comparable scalar measures along specific directions.

Optimal Alignment for Maximum Dot Product

The maximum value of the dot product is achieved when the two vectors are aligned in the same direction, meaning the angle between them is zero. This principle is important in optimization problems where it is necessary to determine the conditions for maximum influence or the most effective alignment between two directional quantities.
