Refer to Figure 10-2 for problems 31 through 35 . FIGURE...

Refer to Figure $10-2$ for problems 31 through 35 .
FIGURE CANT COPY

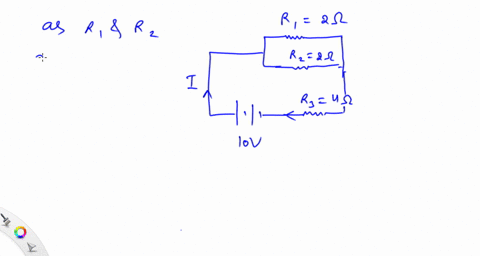

Figure 10-2 Summary review circuit.
The voltage across $R_3$ is (a) 2 volts (b) 4 volts (c) 5 volts (d) 8 volts (e) 10 volts._________

Key Concepts

Ohm's Law

Ohm's Law is a fundamental principle in electrical circuits that relates voltage, current, and resistance through the formula V = IR. It is used to calculate the voltage drop across components when the current flowing through them and their resistance are known, forming the basis for many circuit analysis methods.

Kirchhoff's Voltage Law (KVL)

Kirchhoff's Voltage Law states that the algebraic sum of all voltages in a closed loop of a circuit is zero. This principle is used to analyze circuits by ensuring that the voltage rises and drops around a loop balance out, which is essential for determining unknown voltages in network analysis.

Voltage Division

The voltage division concept applies to series circuits, where the total voltage across a series of resistors is shared among them proportionally based on their resistances. This principle allows for the calculation of the voltage drop across a particular resistor by taking the ratio of its resistance to the total resistance and multiplying it by the total voltage.

Series and Parallel Resistive Networks

Understanding series and parallel resistive networks is crucial for circuit analysis because the arrangement of resistors affects both the total resistance and the distribution of voltage and current in the circuit. In series circuits, resistances add directly, while in parallel circuits, the reciprocal of the total resistance is the sum of the reciprocals of the individual resistances.
