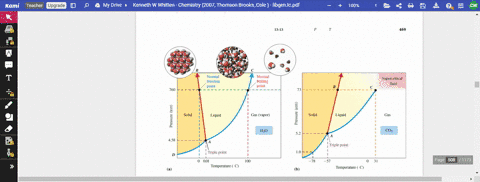

Refer to the phase diagram of CO2 in Active Figure 13-17 b to answer this. What phases of CO2 a

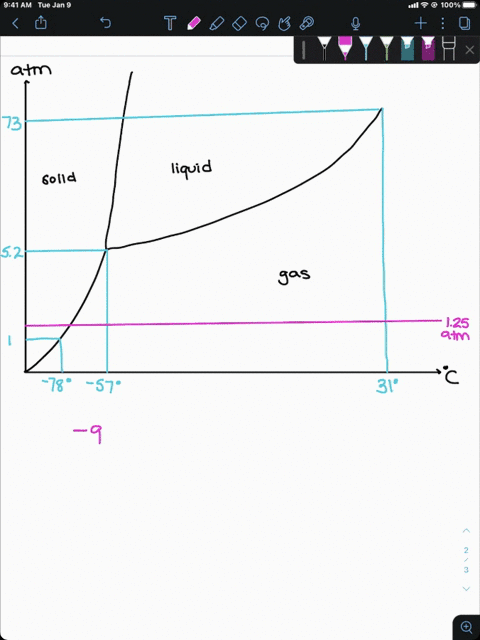

step 1 This question asks us to look at the phase diagram for CO2 and determine what phase CO2 is in at

Refer to the phase diagram of CO2 in Active Figure 13-17 b...

Refer to the phase diagram of $\mathrm{CO}_{2}$ in Active Figure $13-17 \mathrm{~b}$ to answer this. What phases of $\mathrm{CO}_{2}$ are present (a) at a temperature of $-78^{\circ} \mathrm{C}$ and a pressure of $1.0 \mathrm{~atm} ?$ (b) at $-57^{\circ} \mathrm{C}$ and a pressure of $5.2 \mathrm{~atm} ?$

Refer to the phase diagram of $\mathrm{CO}_{2}$ in Active Figure $13-17 \mathrm{~b}$ to answer this.
What phases of $\mathrm{CO}_{2}$ are present (a) at a temperature of $-78^{\circ} \mathrm{C}$ and a pressure of $1.0 \mathrm{~atm} ?$ (b) at $-57^{\circ} \mathrm{C}$ and a pressure of $5.2 \mathrm{~atm} ?$

Key Concepts

Pressure-Temperature Relationship

The pressure-temperature relationship is a key concept in thermodynamics that describes how changes in pressure and temperature can alter the stable phase of a substance. In phase diagrams, phase boundaries are drawn based on this relationship, showing the conditions under which phase transitions such as melting, boiling, sublimation, or deposition occur.

Phase Equilibrium

Phase equilibrium refers to a state in which different phases of a substance coexist at equilibrium, with no net change in their amounts over time. This concept is fundamental in interpreting phase diagrams as it explains how and why a substance remains in a particular phase under set conditions or transitions between phases when external conditions are altered.

Triple Point

The triple point is the unique set of conditions at which all three phases of a substance (solid, liquid, and gas) coexist in equilibrium. It represents a key reference point on a phase diagram because it marks the exact temperature and pressure where phase transitions converge.

Phase Diagram

A phase diagram is a graphical representation that shows the state of matter (solid, liquid, or gas) of a substance under different combinations of temperature and pressure. It provides boundaries that separate the regions where each phase is stable and helps predict which phase will be present under given conditions.

Sublimation and Deposition

Sublimation is the direct transition from the solid phase to the gas phase without passing through the liquid phase, while deposition is the reverse process where a gas turns directly into a solid. These processes occur under specific pressures and temperatures, often below the triple point, and are important for understanding phase behavior in substances that do not have a stable liquid phase at atmospheric conditions.
