Reference frame S^' passes reference frame S with a certain...

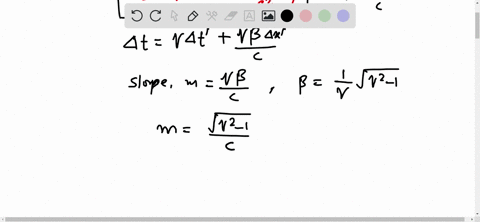

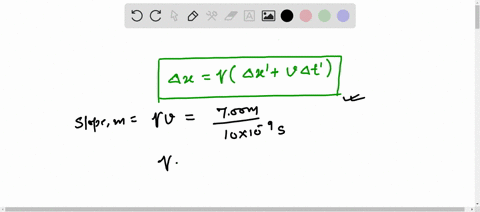

Reference frame $S^{\prime}$ passes reference frame $S$ with a certain velocity as in Fig. $37-9$ . Events 1 and 2 are to have a certain spatial separation $\Delta x^{\prime}$ according to the $S^{\prime}$ observer. However, their temporal separation $\Delta t^{\prime}$ according to that observer has not been set yet. Figure $37-30$ gives their spatial separation $\Delta x$ according to the $S$ observer as a function of $\Delta t^{\prime}$ for a range of $\Delta t^{\prime}$ values. The vertical axis scale is set by $\Delta x_{a}=10.0 \mathrm{m} .$ What is $\Delta x^{\prime \prime} ?$

Key Concepts

Lorentz Transformation

The Lorentz transformation is the set of equations that relates the space and time coordinates of events as seen in one inertial frame to those in another, moving at a constant velocity relative to the first. It mathematically encapsulates how measurements of space and time adjust due to the relative motion between observers, leading to effects such as time dilation and length contraction.

Relativity of Simultaneity

This concept addresses the idea that events which are simultaneous in one inertial frame might not be simultaneous in another frame moving relative to the first. It highlights that the temporal order and separation of events depend on the observer’s state of motion, fundamentally challenging the notion of absolute time in classical physics.

Spatial Separation and Length Contraction

Spatial separation refers to the measured distance between two events or objects along a specified direction. In the context of special relativity, length contraction is the phenomenon where the observed length between two points in a moving frame appears shorter than that measured in a frame where the points are at rest. This adjustment is a direct consequence of the Lorentz transformations.

Reference Frames

Reference frames are coordinate systems used by observers to measure physical quantities like time and space. In special relativity, inertial reference frames—those moving at constant velocities—are particularly important because the laws of physics, including the speed of light, are invariant across them. Transformations between these frames reveal how observers in motion relative to one another can disagree on the measurements of space and time intervals.
