Referring to Figure 10.16, (a) Calculate P3 and note how it...

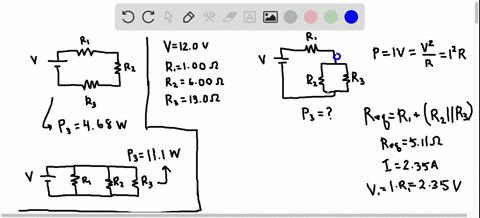

Referring to Figure $10.16,$ (a) Calculate $P_{3}$ and note how it compares with $P_{3}$ found in the first two example problems in this module. (b) Find the total power supplied by the source and compare it with the sum of the powers dissipated by the resistors.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Circuit Analysis Techniques

This encompasses a variety of methods used to analyze electrical circuits, including applying Kirchhoff’s Voltage Law (KVL), Kirchhoff’s Current Law (KCL), and other network theorems. Mastery of these techniques is essential for solving for unknown quantities like currents and voltages, which are then used to calculate power in different parts of the circuit, thereby enabling careful comparisons and validations against example problems.

Power Calculation in Resistive Circuits

This concept involves determining the amount of electrical power dissipated by resistors using formulas such as P = I²R or P = V²/R. Understanding how to compute power in individual circuit components is key for analyzing energy consumption and ensuring that components are rated appropriately for the power they dissipate, as well as for verifying circuit performance across different examples or configurations.

Conservation of Energy in Electrical Circuits

In circuit analysis, the law of conservation of energy dictates that the total power supplied by sources within a circuit must equal the total power consumed or dissipated by the components, such as resistors. This principle is used to cross-check calculations and to ensure that the distribution of power in a circuit is consistent with fundamental energy conservation laws.
