Refrigerant-134a is converted from a saturated liquid to a...

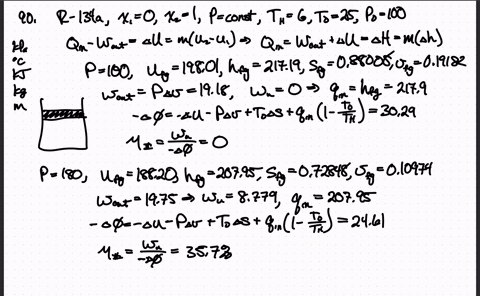

Refrigerant-134a is converted from a saturated liquid to a saturated vapor in a closed system using a reversible constant-pressure process by transferring heat from a heat reservoir at $6^{\circ} \mathrm{C}$. From a second-law point of view, is it more effective to do this phase change at $100 \mathrm{kPa}$ or $180 \mathrm{kPa}$ ? Take $T_{0}=25^{\circ} \mathrm{C}$ and $P_{0}=100 \mathrm{kPa}.

Key Concepts

Second Law of Thermodynamics

This concept concerns the direction of natural processes and the inevitable occurrence of irreversibilities due to entropy generation. In analyzing thermal processes, the second law is used to determine the theoretical limits on efficiency and to quantify how far a real process deviates from an ideal reversible process.

Exergy Analysis

Exergy quantifies the maximum useful work possible from a system as it comes into equilibrium with its surroundings. It takes into account both energy quantity and quality, and exergy analysis is crucial in comparing the effectiveness of different processes by measuring how much potential is lost due to irreversibility.

Reversible Process

A reversible process is an idealized concept where the system changes state in such a way that the process can be completely reversed without producing any entropy. This concept is important because it sets the benchmark for the highest efficiency possible in any thermal process, including phase transitions.

Phase Change Under Constant Pressure

Phase changes, such as the conversion from saturated liquid to saturated vapor, occur at constant pressure for pure substances. Understanding the latent heat involved and the associated energy exchange is essential for evaluating the thermodynamic performance of the process, particularly when considering efficiency from a second-law perspective.

Saturation Conditions and Pressure Dependence

Saturation conditions define the specific temperature and pressure at which a substance exists in equilibrium between its liquid and vapor phases. Recognizing that the saturation temperature increases with pressure is critical for assessing how variations in operating pressure affect both the thermodynamic path and the associated irreversibilities in a process.
