Repeat Problem 22.43, but now let the outer shell have charge -2 q. The inner shell still has ch

Repeat Problem 22.43, but now let the outer shell have...

Key Concepts

Gauss's Law

Gauss's law relates the electric flux through a closed surface to the enclosed charge, making it an essential tool for calculating electric fields in systems possessing spherical symmetry. This principle simplifies the analysis by allowing one to consider a symmetrical Gaussian surface that encompasses the charges, leading to straightforward computation of fields in regions inside, between, and outside charged shells.

Conductors and Electrostatic Equilibrium

In electrostatic equilibrium, the electric field within a conductor is zero, which causes free charges to redistribute themselves on the conductor's surface. This redistribution ensures that the potential remains constant throughout the conductor. Understanding this property is crucial when analyzing the charged surfaces of spherical shells and the resulting field distributions.

Charge Induction and Surface Charge Distribution

When conductors with assigned net charges are arranged in multi-layer configurations, such as nested spherical shells, induced charges appear on their surfaces to maintain electrostatic conditions. The inner and outer surfaces acquire different charge densities as a result, impacting the overall electric field and potential. This concept is key to problems involving the interaction of multiple charged surfaces.

Superposition Principle

The superposition principle states that the total electric field or potential in a system is the vector sum of the individual contributions from each separate charge distribution. This principle is fundamental when dealing with complex charge arrangements, as it allows one to break down the system into simpler parts and compute the overall electric field or potential by summing these contributions.

Transcript

00:01 Here we're going to be using gauss's law to look at some nested spheres.

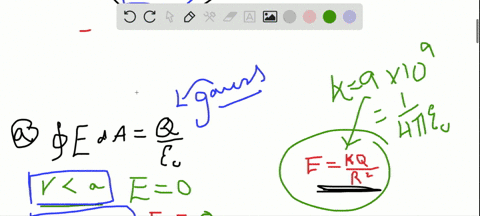

00:07 So a reminder that gauss's law says that the electric field projected through a closed area, closed surface, that that is proportional to the amount of charge enclosed by that surface.

00:33 You almost never have to do the integral on the left -hand side.

00:39 In fact, if you have a sphere, spherical symmetry guarantees that the radial field of the electric component is the only one that exists and that it is constant on a spherical surface of radius 4 pi r squared, where r is an arbitrary radius that you get to draw for your gaussian surface.

01:06 And i will show an example of a gaussian surface around this situation.

01:14 So that is an example of an r out to a gaussian surface.

01:29 But as long as everything is symmetrical, that electric field is radial and uniform on that surface.

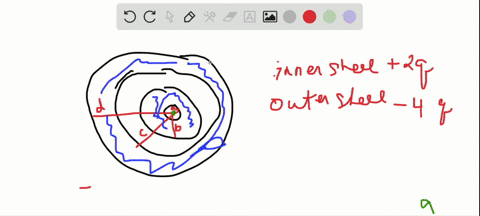

01:38 So in this example, what we can see is, so there are two metal spheres nested one inside the other.

01:50 The inner sphere extends from a to b, outer sphere from c to t, and two q is on the inner sphere minus 2q on the outer.

02:02 What we can tell immediately is because there are conductors, we should have no electric field inside either one.

02:20 Okay, so that is going to wipe out the electric field in the following regions, are less than or equal to b or greater than equal to a, and also the same for the outer shell.

02:46 In addition, because of gauss's law, inside the inner sphere and totally outside, there is no enclosed charge.

02:57 So no enclosed charge means that the electric field for r less than or equal to a and r greater than or equal to d, that the electric field is zero there.

03:16 So there is only one place that we are going to have an electric field, and it is due to, i can draw the surface inside that gap between the two spheres.

03:34 And so in the region, in that gap, so that is r greater than or equal to b, less than or equal to c, q enclosed is plus 2q...
