Repeat Problem 40(c) using a different eyepiece that gives an angular magnification of 5.00 for

Repeat Problem 40(c) using a different eyepiece that gives...

Key Concepts

Lens Equation

The lens equation relates the object distance, the image distance, and the focal length of a lens. This fundamental relationship is essential in optical design because it governs the formation of images and helps in determining the appropriate focal lengths and placement of lenses within instruments like microscopes and telescopes to achieve the desired magnification and image quality.

Eyepiece Functionality

The eyepiece in an optical instrument is the lens through which the viewer observes the image. Its design, including its focal length and optical power, directly influences the angular magnification and the position of the final, virtual image. Adjustments to the eyepiece allow for variations in magnification and image location, making it a key component in tailoring the instrument to the viewer’s requirements.

Angular Magnification

Angular magnification is the ratio of the angle subtended by the image when viewed through an optical instrument to the angle subtended by the object when viewed with the naked eye. It quantifies how much larger an object appears through a device, and is a central concept in the design and analysis of magnifiers, telescopes, and microscopes.

Near Point

The near point is the closest distance at which the human eye can comfortably focus on an object, typically taken as 25.0 cm for a normal eye. In optical devices, the location of the final image relative to the near point affects both the perceived magnification and the ease of viewing, with virtual images being designed at this distance for optimal viewing conditions.

Virtual Image Formation

Virtual image formation refers to the creation of an image by an optical system that cannot be projected onto a screen because the light rays do not actually converge at the image location. Instead, the image appears to be located at a certain distance from the optical instrument, such as at the near point, which is crucial in the design of eyepieces for devices like magnifiers.

Transcript

00:02 In this problem we have a microscope where the final image is produced at the near point and we want to compute where the initial object is located with respect to the objective.

00:20 So that we have called p .o.

00:25 Prime.

00:26 P .o .o.

00:28 Because of the objective.

00:32 And we have some information about this microscope.

00:35 We have the focal length of the objective, the length of the tube, and the angular magnification produced by the ips.

00:51 Okay, in order to compute this position of the initial object, we first are going to compute the value of the image that it produced.

01:08 And in order to get the value of this, we first, i'm going to compute the value of the object distance for the ips.

01:24 So this here, that we can call it pe.

01:31 This is what we are going to compute first.

01:35 So if we have this pe, we can compute the value of qo prime, and then we can get what we want initially.

01:45 That is this object distance.

01:49 Initial object distance.

01:51 Ok, we're going to use a result that we have compute in problem 35.

01:58 So in problem 35, we have compute where is the object distance for a magnifier that produce an image at a near point.

02:11 So we are in this case.

02:14 And we have also compute what is the angular magnification of this magnifier.

02:21 In this case, this magnifier is the ips.

02:24 So from that problem, from problem 35, we get that the angular magnification of the ips is just end over the focal length of this.

02:50 Lens the ips, that's one.

02:57 This is one result that we get from that problem.

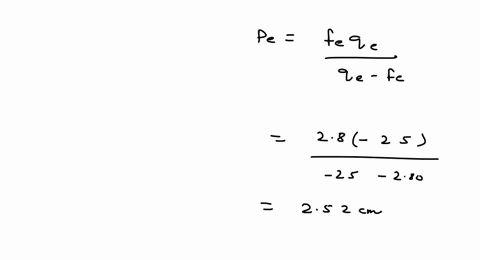

03:02 And the other result, we can compute this pe, that is the object distance for this magnifier pe.

03:12 And we compute in that problem that this is just n times the focal length over n plus n plus.

03:26 As this focal length.

03:29 Okay, from this first part, as we know that this is phi from information of the problem, we can get the focal length of this lens of the ips.

03:43 We know that n is, we must remember always that this n is 0 .25 mirrors.

03:51 There is a typical near distance...
