Replace the five forces acting on the plate by a wrench. Specify the magnitude of the force and

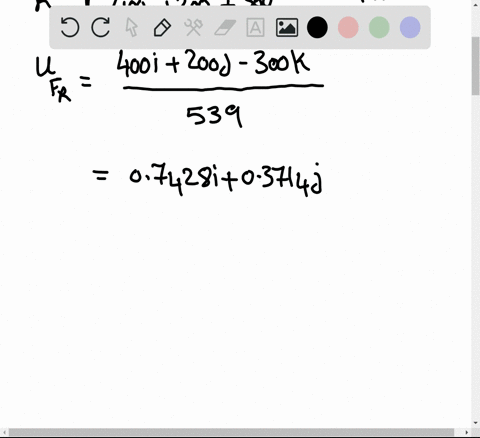

step 1 Hi everyone in this problem we have to replace five forces as a resultant force on plate by a br

Replace the five forces acting on the plate by a wrench....

Key Concepts

Line of Action and Point of Application

The line of action of a force is the infinite line along which the force vector lies. Identifying the point where this line intersects a specific plane (in this case, the x-z plane) is important for determining the exact point of application of the equivalent wrench. This intersection point represents where the resultant force and couple moment together accurately replicate the original system's mechanical behavior.

Couple Moment

A couple moment, or simply a moment, refers to the turning effect produced by a force acting at a distance from a point of rotation. In the context of wrench reduction, the couple moment accounts for the net rotational effect generated by the original set of forces, independent of the line of action of the force.

Force-Couple System

This is a fundamental concept in mechanics where a system of forces is represented by an equivalent single resultant force combined with a moment (or couple). It simplifies the analysis of a body's equilibrium by summarizing multiple forces into two components: one that causes translation (net force) and one that causes rotation (couple moment).

Wrench Reduction

Wrench reduction is the process of replacing a complex distribution of forces and moments acting on a rigid body with an equivalent system known as a wrench. A wrench consists of a single force and a single couple moment that together produce the same mechanical effect as the original force system.

Resultant Force

The resultant force is the vector sum of all individual forces acting on a system. Determining the magnitude and direction of the resultant force is critical in reducing a set of forces to a simpler equivalent system, such as a wrench.
