Review problem. A 30.0 -kg hammer, moving with speed 20.0 m / s, strikes a steel spike 2.30 cm i

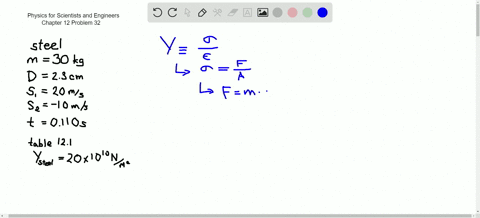

step 1 In this problem we have a 30 kilogram hammer that's moving at 20 meters per second and strikes a

Review problem. A 30.0 -kg hammer, moving with speed 20.0 m...

Review problem. A 30.0 -kg hammer, moving with speed $20.0 \mathrm{m} / \mathrm{s},$ strikes a steel spike 2.30 $\mathrm{cm}$ in diameter. The hammer rebounds with speed 10.0 $\mathrm{m} / \mathrm{s}$ after 0.110 s. What is the average strain in the spike during the impact?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Cross-Sectional Area Determination

Calculating the cross-sectional area of a component, such as a steel spike with a circular cross-section, is critical because stress is computed by dividing the applied force by this area. Geometric formulas, like using the diameter or radius of a circle, are employed to find the area.

Stress and Strain Relationship

Stress is defined as the force applied per unit area, and strain is the measure of deformation experienced by a material (change in length relative to original length). Their relationship, often linear within the elastic limit as given by Hooke's law, helps in understanding how materials deform under applied forces.

Impulse-Momentum Theorem

This theorem states that the change in momentum of an object is equal to the impulse applied to it, where impulse is the product of average force and the time interval over which the force acts. It is used to calculate the average force during an impact by relating the momentum change to the time duration of the collision.

Average Force Calculation

Average force is determined by dividing the computed impulse (change in momentum) by the duration of the impact. This concept is crucial in dynamics when analyzing collisions and impact events.
