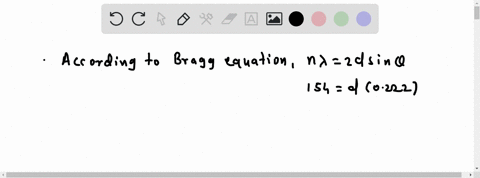

step 1 So here in this question the first four orders of diffraction for a powder camera are the first

Rock salt (sodium chloride) has lattice parameter of 5.63 Å....

Rock salt (sodium chloride) has lattice parameter of $5.63 \AA$. When the $K_{\alpha 1}$ line from copper target $(\lambda=1.54 \AA)$ is used with a powder camera, what would be the first three $S$ values? Take the camera diameter as $57.30 \mathrm{~mm}$.

Key Concepts

Bragg's Law

Bragg's Law is the fundamental equation governing X?ray diffraction from crystalline materials. It states that constructive interference occurs when n? = 2d sin?, where ? is the wavelength of the incident radiation, d is the interplanar spacing, ? is the angle of incidence, and n is an integer. This relation is used to calculate the angles at which diffraction peaks appear based on the structural characteristics of the crystal lattice.

Powder Diffraction Technique

Powder diffraction involves the use of a polycrystalline or powdered sample containing randomly oriented crystallites, which produces a series of concentric diffraction rings when irradiated with X?rays. This method simplifies the interpretation of diffraction data by eliminating the need for single?crystal orientation and is widely used in determining crystalline structures and lattice parameters.

Lattice Parameters and Interplanar Spacing

In cubic crystals, the lattice parameter (a) is directly related to the interplanar spacing (d) for a set of crystallographic planes by the formula d = a/?(h² + k² + l²), where h, k, and l are the Miller indices. This relation allows one to calculate the d-spacing for different planes, which is a critical step in applying Bragg's Law to determine diffraction angles.

Allowed Reflections in Crystalline Structures

The structure of a crystal, including the symmetry and basis atoms, determines which sets of crystallographic planes will give rise to observable diffraction peaks. For many structures, like face?centered cubic (FCC) systems, certain reflections may be forbidden due to systematic absences caused by the crystal's symmetry. Understanding these allowed reflections is important for correctly indexing the diffraction pattern.

Diffraction Geometry in Powder Cameras

The geometry of a powder camera, such as the Debye-Scherrer camera, links the diffraction angle to the position of the diffraction rings on the detector or film. Parameters including the camera diameter are used to convert angular positions (from Bragg's Law) into measurable distances. This conversion is essential when determining spatial parameters such as the S values, which are derived from the scattering geometry and represent scaled versions of the diffraction angles.
