Role in this problem. Two forces are applied to a tree stump...

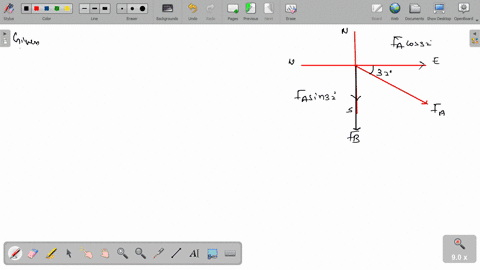

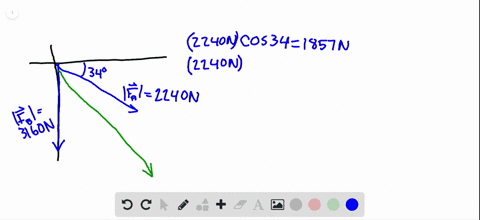

role in this problem. Two forces are applied to a tree stump to pull it out of the ground. Force $\overrightarrow{\mathbf{F}}_{\mathbf{A}}$ has a magnitude of 2240 newtons and points $34.0^{\circ}$ south of east, while force $\overrightarrow{\mathbf{F}}_{\mathbf{B}}$ has a magnitude of 3160 newtons and points due south. Using the component method, find the magnitude and direction of the resultant force $\overrightarrow{\mathbf{F}}_{\mathrm{A}}+\overrightarrow{\mathbf{F}}_{\mathrm{B}}$ that is applied to the stump. Specify the direction with respect to due east.

Key Concepts

Pythagorean Theorem

The Pythagorean theorem is used to calculate the magnitude of the resultant vector when its perpendicular components are known. By taking the square root of the sum of the squares of the individual components, one can determine the overall magnitude of the vector, a key step in resolving force problems.

Vector Addition

Vector addition is a fundamental concept in physics where two or more vectors are combined to produce a resultant vector. This process involves adding the corresponding components of each vector, allowing the determination of overall magnitude and direction. It is essential in examining how multiple forces or motions interact in a system.

Component Method

The component method involves breaking down a vector into its horizontal and vertical components using trigonometric functions. By resolving vectors into components, calculations become simpler, as each direction can be handled separately. This approach is crucial in mechanics for determining net effects such as the total force acting on an object.

Trigonometric Decomposition

Trigonometric decomposition is the process of using sine and cosine functions to separate a vector into its perpendicular components relative to a chosen coordinate system. The cosine function is typically used to find the horizontal (or adjacent) component, and the sine function is used to find the vertical (or opposite) component, which is paramount in analyzing vectors given in polar form.

Inverse Trigonometric Functions

Inverse trigonometric functions, particularly the arctan function, are used to determine the angle or direction of a resultant vector relative to a reference axis. Once the horizontal and vertical components are known, the arctan of their ratio yields the angle, providing insight into the vector’s orientation in a coordinate system.
