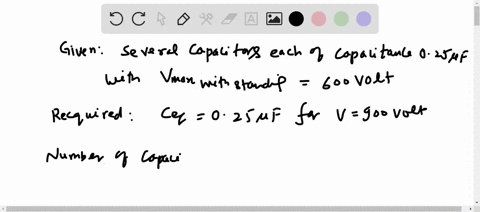

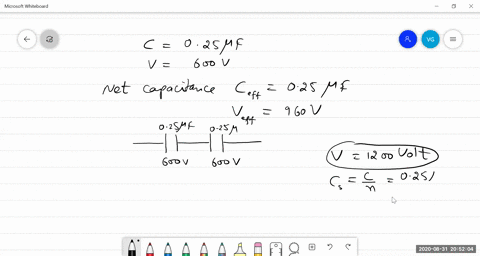

Several $0.25-\mu \mathrm{F}$ capacitors are available. The voltage across each is not to exceed 600 $\mathrm{V}$ . You need to make a capacitor with capacitance 0.25$\mu \mathrm{F}$ to be connected across a potential difference of 960 $\mathrm{V}$ (a) Show in a diagram how an equivalent capacitor- with the desired properties can be obtained. (b) No dielectric is a perfect insulator that would not permit the flow of any charge through its volume. Suppose that the dielectric in one of the capacitors in your diagram is a moderately good conductor. What will happen in this case when your combination of capacitors is connected across the $960-$ V potential difference?

Several $0.25-\mu \mathrm{F}$ capacitors are available. The voltage across each is not to exceed 600 $\mathrm{V}$ . You need to make a capacitor with capacitance 0.25$\mu \mathrm{F}$ to be connected across a potential difference of 960 $\mathrm{V}$ (a) Show in a diagram how an equivalent capacitor-
with the desired properties can be obtained. (b) No dielectric is a perfect insulator that would not permit the flow of any charge through its volume. Suppose that the dielectric in one of the capacitors in your diagram is a moderately good conductor. What will happen in this case when your combination of capacitors is connected across the $960-$ V potential difference?

Key Concepts

Voltage Division in Series Circuits

When capacitors are connected in series, the applied voltage is divided among them. This voltage division is typically proportional to the inverse of their capacitances. For identical capacitors, the voltage divides equally. This principle is crucial when trying to safeguard capacitors by ensuring that the voltage across each individual capacitor remains below its rated maximum, even when the overall combination is subjected to a higher applied voltage.

Dielectric Conduction and Its Effects

Capacitors rely on their dielectrics to prevent charge flow and maintain charge separation. However, if a dielectric becomes a moderately good conductor, it can no longer effectively insulate the plates, leading to leakage current. In a series configuration, if one capacitor’s dielectric starts conducting, it may develop a lower internal voltage drop and disrupt the intended voltage division. This imbalance could force neighboring capacitors to bear a disproportionate share of the applied voltage, potentially exceeding their ratings and leading to failure of the entire arrangement.

Series and Parallel Capacitor Combinations

This concept involves connecting capacitors in series and parallel to achieve desired electrical characteristics—specifically, altering the overall capacitance and voltage rating of the system. In series, the voltage ratings of individual capacitors add up, increasing the maximum voltage the combination can tolerate, although the overall capacitance decreases. Conversely, capacitors in parallel add their capacitances while maintaining the same voltage rating as the individual units. By designing the arrangement appropriately (for example, using series strings to handle a higher voltage and then paralleling such strings to restore the desired capacitance), one can achieve a component that meets specific voltage and capacitance requirements.
