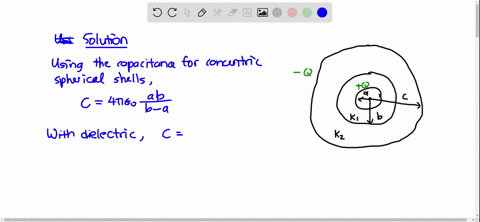

Shells The space between two concentric conducting spherical shells of radii $b$ and $a$ (where $b>a$ ) is filled with a substance of dielectric constant $\kappa .$ A potential difference $\Delta V$ exists between the inner and outer shells. Determine (a) the capacitance of the device, (b) the excess free charge $q$ on the inner shell, and (c) the charge $q^{\prime}$ induced along the surface of the inner shell.

Key Concepts

Spherical Capacitor

A spherical capacitor is a type of capacitor that consists of two concentric spherical conductors separated by an insulating medium. Its capacitance is determined by the radii of the two spheres and the properties of the medium between them, notably using integration of the electric field or applying known formulas. This concept helps in understanding how geometry influences the relationship between stored charge and potential difference.

Dielectric Materials

Dielectric materials are insulating substances characterized by their dielectric constant (?), which measures their ability to reduce the effective electric field within the material. When a dielectric fills the space between capacitor plates (or shells in the spherical case), it increases the capacitance by reducing the potential difference for a given charge. This concept is used to analyze capacitors in various media by modifying the permittivity term.

Capacitance

Capacitance is the measure of a system's ability to store electrical charge per unit potential difference between conductors. In the context of a spherical capacitor, it is derived from the geometry of the spherical shells and is affected by the insertion of a dielectric. Understanding capacitance involves combining the effects of geometry and material properties to relate free charge and voltage.

Charge Distribution and Induction

In conductors, free charges arrange themselves on the surfaces in such a way that the electric field inside remains zero. When conductors are involved in a capacitor, the excess free charge on one conductor generates an induced charge distribution on adjacent conductive surfaces. This separation into free and induced (or polarization) charges is critical for analyzing electrostatic equilibrium in capacitor systems and determining the resultant electric field and potentials.
