Show for the body-centered cubic crystal structure that the unit cell edge length a and the atom

step 1 Okay in this question we are asked that show for the body center cube crystal structure that the

Show for the body-centered cubic crystal structure that the...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Body-Centered Cubic (BCC) Structure

The body-centered cubic structure is a type of crystal arrangement in which atoms are positioned at each of the eight corners of a cube with an additional atom located at the center. This arrangement determines the symmetry, density, and packing efficiency of the crystal, influencing how atomic radii and unit cell dimensions relate to one another.

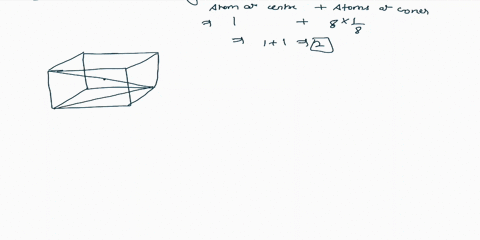

Geometrical Consideration of the Cube's Body Diagonal

In a cube, the body diagonal is the line connecting two opposite corners and can be calculated as the edge length multiplied by the square root of three. This geometric feature is crucial in analyzing contact between atoms in certain crystal structures, as it provides a pathway to relate the atomic radius to the overall size of the unit cell.

Relationship Between Atomic Radius and Unit Cell Parameter

For the BCC structure, atoms are assumed to be spherical and to contact each other along the body diagonal. Since the diagonal spans four atomic radii (passing through two corner atoms and one body-centered atom), equating the body diagonal and the sum of the atomic radii leads to the relationship that connects the unit cell edge length with the atomic radius, which is fundamental in determining crystal packing and structural properties.
