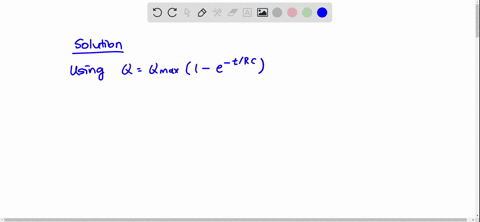

Show that a capacitor is charged to approximately 99 % of...

Key Concepts

RC Circuit

An RC circuit is an electrical circuit composed of resistors and capacitors. It is one of the simplest circuits used to investigate the dynamic behavior of voltage and current over time, particularly when a capacitor is charging or discharging. Understanding this circuit is fundamental as it introduces the role of resistance and capacitance in controlling how quickly the circuit responds to a change in voltage.

Time Constant

The time constant, denoted by ? (tau), is the product of the resistance (R) and the capacitance (C) in an RC circuit. It characterizes the speed at which a capacitor charges or discharges. A larger time constant indicates a slower rate of charging or discharging, while a smaller time constant means the process happens more rapidly. This parameter is essential for quantitatively analyzing transient circuits.

Exponential Charging Equation

The charging of a capacitor in an RC circuit follows an exponential behavior, described by the equation Vc(t) = V(1 - e^(-t/RC)), where Vc(t) is the voltage across the capacitor at time t, V is the applied voltage, and RC is the time constant. This relation underscores how the voltage asymptotically approaches the applied voltage over time. The equation is central in understanding the transient response of RC circuits.

Capacitor Charge Percentage Approximation

After a time period equal to five time constants (5RC), substituting into the exponential charging equation yields Vc(5RC) = V(1 - e^(-5)). Since the value of e^(-5) is approximately 0.007, the voltage across the capacitor becomes about 99% of the applied voltage. This approximation is widely used in engineering to simplify the analysis and design of circuits by considering the capacitor to be nearly fully charged after a duration of 5RC.
