Show that for frequencies 10^9 s^-1, a sample of silicon will act like a good conductor. For s

step 1 Hello students in this question we have to show that for the frequency new less than 10 to the p

Show that for frequencies 10^9 s^-1, a sample of silicon...

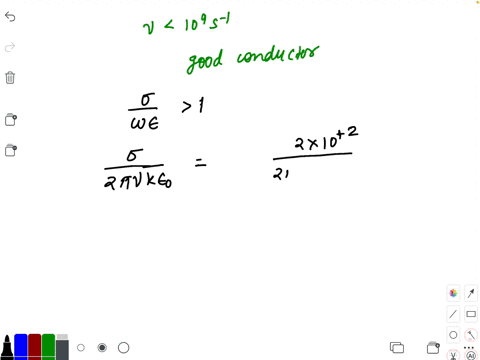

Show that for frequencies $\ 10^{9} \mathrm{~s}^{-1}$, a sample of silicon will act like a good conductor. For silicon one may assume $\frac{\varepsilon}{\varepsilon_{0}} \approx 12$ and $\sigma \approx 2 \mathrm{mhos} / \mathrm{cm}$. Also calculate the penetration depth for this sample at $y=10^{6} \mathrm{~s}^{-1}$.

Show that for frequencies $\ 10^{9} \mathrm{~s}^{-1}$, a sample of silicon will act like a good conductor. For silicon one may assume
$\frac{\varepsilon}{\varepsilon_{0}} \approx 12$ and $\sigma \approx 2 \mathrm{mhos} / \mathrm{cm}$. Also calculate the penetration
depth for this sample at $y=10^{6} \mathrm{~s}^{-1}$.

Key Concepts

Good Conductor Approximation

This concept refers to conditions under which a material’s conduction current dominates over its displacement current. In electromagnetic wave propagation, if the conductivity (?) of a material is much greater than the product of the angular frequency (?) and its permittivity (?), the material is considered a good conductor. This simplifies analysis as the conduction mechanisms mainly govern the electromagnetic response, and terms involving ?? can often be neglected in the propagation constant calculation.

Skin Depth

Skin depth is defined as the distance into a conductor at which the amplitude of an electromagnetic wave decreases to 1/e of its value at the surface. It is a measure of how deeply an electromagnetic wave can penetrate into a conducting material and is dependent on the material’s permeability (?), conductivity (?), and the frequency (?) of the incident wave. For high frequencies and good conductors, the skin depth is small, implying that electromagnetic energy is confined near the surface.

Electromagnetic Wave Propagation in Conductors

This involves the study of how electromagnetic waves travel through conductive media where both displacement and conduction currents are present. In such media, the wave propagation is governed by a complex propagation constant that accounts for phase shift and attenuation through the material. The behavior of the wave is influenced by both the inherent dielectric properties (?, ?) and the conductivity (?) of the medium, leading to phenomena such as rapid amplitude decay, characterized by the skin effect.

Complex Permittivity

In conductive materials, the permittivity can be treated as a complex quantity to incorporate both the storage and loss mechanisms associated with electromagnetic wave propagation. The real part represents the material's ability to store electrical energy, while the imaginary part, often related to conductivity, represents the dissipative loss of energy. This complex representation is essential to accurately describe and predict the behavior of waves in media where conduction effects cannot be neglected.
