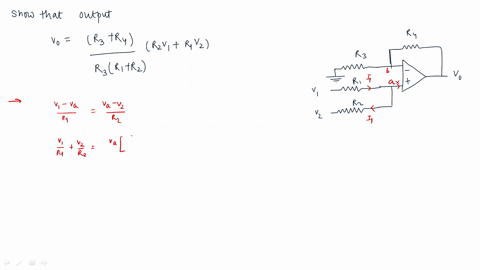

Show that the output of the circuit in Fig. P4.28 is ...

Key Concepts

Operational Amplifier

An operational amplifier (op-amp) is a high-gain electronic voltage amplifier with differential inputs and, typically, a single-ended output. In circuit analysis, op-amps are often assessed under the ideal assumption of infinite open-loop gain, infinite input impedance, and zero output impedance, which simplifies the analysis by allowing the engineer to assume that the difference between the voltages at the two input terminals is virtually zero when negative feedback is present.

Virtual Short Concept

The virtual short concept is the assumption that the voltage difference between the inverting and non-inverting inputs of an op-amp is approximately zero when the op-amp is operating in its linear region with negative feedback. This key idea allows one to set the two input voltages equal in node analysis, greatly simplifying the derivation of the relationship between the input and output voltages in various op-amp configurations.

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law states that the algebraic sum of currents entering a node (or junction) must be zero. In the context of op-amp circuit analysis, KCL is applied to the nodes, especially at the inverting (or non-inverting) input, to derive the relationships between the currents through the resistors connected to the op-amp. This analytical process is crucial for establishing the gain formulas and understanding how different input signals affect the output.

Feedback Networks

Feedback networks consist of resistors and other elements that feed a portion of the output signal back to the input of the op-amp. These networks are fundamental for setting the overall gain and stability of the circuit. In both inverting and non-inverting configurations, the ratio of feedback resistors determines how the output voltage is related to the input voltages, making it possible to achieve precise control over the circuit's amplification properties.

Superposition Principle

The superposition principle is used in linear circuit analysis to determine the contribution of each independent source separately before summing them to find the total response. In circuits with multiple voltage inputs, such as the one under discussion, this principle allows the analysis of each input's effect on the output independently, confirming that the overall output is the algebraic sum of the outputs produced by each input when all other independent sources are deactivated.
