Show the approximate level of the movable piston in drawings ( a), (b), and (c) after the indica

Show the approximate level of the movable piston in drawings...

Key Concepts

Piston-Cylinder Systems

A piston-cylinder setup is a practical arrangement used to illustrate the effects of gas state changes. In these systems, the movable piston adjusts the volume of the gas based on varying conditions such as heating, cooling, compression, or expansion. This mechanism provides a visual and measurable way to understand and apply the principles of gas laws in real-world scenarios.

Thermodynamic State Variables

Pressure, volume, and temperature are the key state variables that define the condition of a gas. Understanding their interplay is essential for predicting the behavior of a gas when subjected to changes. For example, an increase in temperature can result in a higher pressure if the volume is fixed, or it can cause the volume to expand if the pressure is allowed to change, which is directly observed by the movement of a piston.

Ideal Gas Law

This fundamental law in thermodynamics relates the pressure, volume, and temperature of an ideal gas. It shows that if the temperature or pressure of the gas changes, the volume will adjust accordingly. This concept is crucial when analyzing how a movable piston responds to changes in the gas, as an increase in temperature or a decrease in external pressure would typically result in the piston moving to accommodate the change in volume.

Transcript

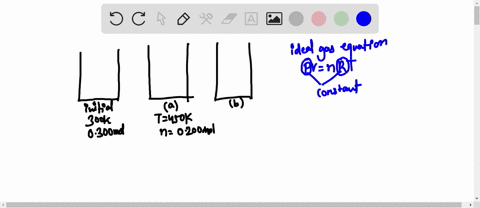

00:02 So in this question, we're given a gas in a movable piston at a certain set of conditions, and then we change the conditions, and we're asked for the approximate level of the gas in these new conditions.

00:15 So i've just written in the changed conditions.

00:19 I didn't write in the ones that stayed the same on each of these examples.

00:22 And you can see the dotted line where we have the original level of the gas.

00:27 So with the first one, the first one honestly is kind of a little bit of a trap, because you look at it, you say, okay, well, we're going from 25 degrees to 50 degrees, so the temperature is doubling, which means that the volume needs to double two.

00:40 Except the problem with that is that in gas laws, you should never work in celsius.

00:45 You always have to convert it into kelvin.

00:48 So to convert to kelvin, we have to add 273.

00:51 So we add 273 to our 25.

00:54 We get 298.

00:55 I'm just going to call it 300, since we're just estimating anyway.

00:59 So now we can see that if we're going to be.

01:02 Going from 300 and then we're going up 25 degrees from that, we are certainly not going to be increasing by double.

01:11 We are going to increase a little bit, but it's only going to be about 8%.

01:16 So i'm just going to put this just a little bit above that initial line.

01:26 And that's pretty much what that one looks like.

01:27 It doesn't change very much.
