Sketch a circuit diagram for a circuit that includes a...

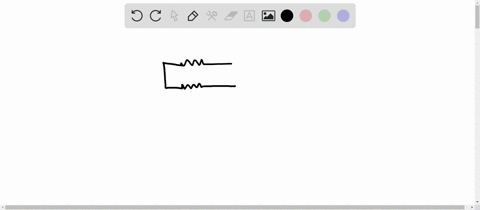

Sketch a circuit diagram for a circuit that includes a resistor $R_{\square}$ connected to the positive terminal of a battery, a pair of paralle resistors $R_{2}$ and $R_{3}$ connected to the lower-voltage end of $R_{1}$ and then returned to the battery's negative terminal, and a capacitor across $R_{2}$

Key Concepts

Circuit Diagram

A schematic representation that uses standardized symbols to depict electrical components and their connections within a circuit. It is a fundamental tool for planning, analyzing, and communicating how a circuit operates.

Series Connection

A method of connecting components in a circuit end-to-end so that the same current flows through each element sequentially. This arrangement is used to ensure that all components experience the same current and to divide the total voltage among them.

Parallel Connection

An arrangement where components are connected across the same two nodes, providing multiple paths for current to flow. This configuration results in each branch having the same voltage across it while dividing the total circuit current among the branches.

Resistors

Passive components that impede the flow of electric current, dissipating energy as heat. They are essential for controlling current levels, setting voltage levels in voltage divider networks, and protecting other components in a circuit.

Capacitors

Devices that store electrical energy in an electric field and are used for filtering, bypassing, or timing applications within circuits. They play a key role in managing voltage changes and in coupling or decoupling parts of a circuit.

Battery

A source of electrical power that converts stored chemical energy into electrical energy. Batteries provide a steady voltage supply and are a crucial component in circuits where a portable or fixed source of energy is required.
