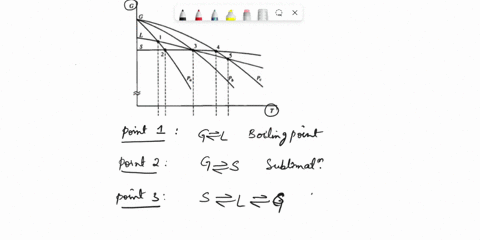

Sketch a qualitatively accurate graph of $G$ vs. $T$ for a pure substance as it changes from solid to liquid to gas at fixed pressure. Think carefully about the slope of the graph. Mark the points of the phase transformations and discuss the features of the graph briefly.

Key Concepts

Latent Heat

During phase transitions, latent heat is either absorbed or released, causing a discontinuity in the slope of the Gibbs free energy graph while the free energy itself remains continuous. This latent heat is associated with the change in entropy between the two phases and is crucial for characterizing the energy exchange during a phase change.

Entropy and Slope Relationship

The slope of the Gibbs free energy versus temperature graph is directly related to the entropy of the system, as given by the relation dG/dT = -S. This means that a steeper slope indicates a higher entropy. The differences in slope for various phases reflect their differing entropic contents and are key to understanding how G changes with temperature.

Phase Transitions

Phase transitions occur when a substance changes from one state of matter to another, such as solid to liquid or liquid to gas. At these transition points, the Gibbs free energies of the phases involved become equal, indicating that the system is in equilibrium and both phases can coexist. These points are marked on the graph where the free energy curves of different phases intersect.

Gibbs Free Energy

Gibbs free energy is a thermodynamic potential that measures the maximum reversible work obtainable from a system at constant temperature and pressure. It is a key function for determining the phase stability of a substance, with the phase having the lowest Gibbs free energy being the most stable at a given temperature and pressure.
