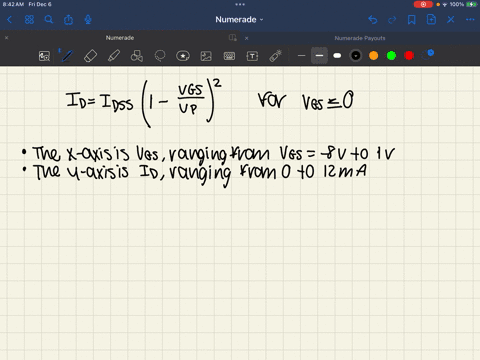

Sketch the transfer and drain characteristics of an $n$ -channel depletion-type MOSFET with $I_{D S S}=12 \mathrm{~mA}$ and $V_{P}=-8 \mathrm{~V}$ for a range of $V_{G S}=-V_{P}$ to $V_{G S}=1 \mathrm{~V}$.

Key Concepts

Regions of Operation

MOSFETs operate in distinct regions based on the applied voltages: the ohmic (or linear) region and the saturation region. In the ohmic region, the device behaves like a variable resistor with the drain current increasing linearly with VDS. In the saturation region, the drain current becomes relatively independent of VDS and is governed primarily by VGS. Understanding these regions is essential for interpreting the drain characteristics and for designing circuits that use MOSFETs for amplification or switching.

Pinch-off Voltage

The pinch-off voltage (or pinch-off condition) is the gate voltage at which the conductive channel is narrowed sufficiently to effectively cut off further increase in the drain current, leading to saturation. In a depletion-type MOSFET, the pinch-off voltage is typically negative. It represents the biasing condition that depletes the channel of carriers, transitioning the device from a highly conductive state to one where the current is controlled primarily by the channel's geometry and the applied voltages rather than the gate bias.

Drain Characteristics

The drain characteristics, or output characteristics, of a MOSFET depict the variation of the drain current (IDS) with the drain-to-source voltage (VDS) for a series of fixed gate-to-source voltages. These curves illustrate the behavior of the device in the linear (ohmic) region at low VDS and the saturation region at higher VDS. For a depletion-type MOSFET, the curves reflect that the device conducts at zero or positive VGS and that the saturation current is reached once the pinch-off condition is met.

Transfer Characteristics

The transfer characteristics of a MOSFET describe the relationship between the drain current (IDS) and the gate-to-source voltage (VGS) for a fixed drain-to-source voltage. In depletion-type devices, the channel is already present at zero bias, so the curve typically starts with a relatively high current at zero VGS and then decreases as VGS becomes more negative. This curve is crucial for understanding the control of the device by the gate and its ability to modulate the channel conductance.

Depletion-type MOSFET

A depletion-type MOSFET is a metal–oxide–semiconductor field-effect transistor that is normally ‘on’ at zero gate-to-source voltage. Unlike enhancement-mode devices, which require a gate bias to create a conducting channel, depletion MOSFETs have an inherent channel that can be depleted by applying a reverse-bias voltage to the gate. This means that as the appropriate gate bias is applied, the conduction channel narrows, eventually reducing the drain current to zero if the depletion is complete.
