Ski-Jump Ramp A 60 kg skier starts from rest at a height of 20 m above the end of a ski-jump r

step 1 This problem covers the concept of conservation of energy and to solve for the problem first we

Ski-Jump Ramp A 60 kg skier starts from rest at a height of...

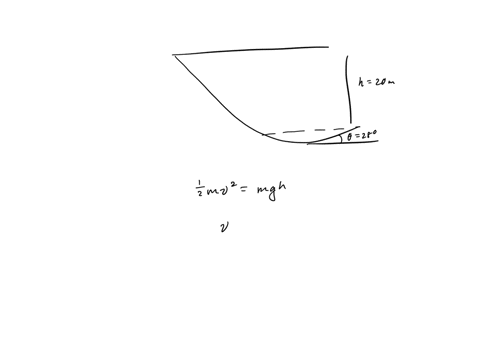

Ski-Jump Ramp A $60 \mathrm{~kg}$ skier starts from rest at a height of $20 \mathrm{~m}$ above the end of a ski-jump ramp as shown in Fig. $10-38 .$ As the skier leaves the ramp, his velocity makes an angle of $28^{\circ}$ with the horizontal. Neglect the effects of air resistance and assume the ramp is frictionless. (a) What is the maximum height $h$ of his jump above the end of the ramp? (b) If he increased his weight by putting on a backpack, would $h$ then be greater, less, or the same?

Key Concepts

Conservation of Energy

This principle explains that the total mechanical energy (the sum of potential and kinetic energy) in a closed system remains constant when only conservative forces are acting. In the context of the ski-jump problem, the skier's gravitational potential energy at the beginning is converted into kinetic energy as he descends, and this kinetic energy is then partitioned into horizontal and vertical components when he leaves the ramp.

Projectile Motion

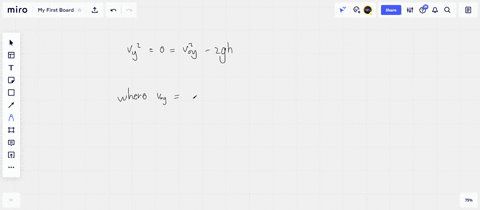

Projectile motion describes the motion of an object that is launched into the air and is subject only to the force of gravity (assuming air resistance is negligible). It involves analyzing the horizontal constant velocity and the vertically accelerated motion due to gravity. The maximum height reached above the ramp is determined by the initial vertical component of the skier's velocity.

Independence of Mass in Projectile Dynamics

In projectile motion, the mass of the object does not influence the trajectory when only gravity is acting upon it. This principle implies that if the skier adds mass (e.g., by wearing a backpack), the conversion of energy and the resulting kinematics remain unaffected, meaning that the maximum height above the ramp will be the same regardless of the additional mass.

Launch Angle and Velocity Components

The launch angle is crucial for resolving the initial velocity into horizontal and vertical components. The vertical component determines the maximum height reached, while the horizontal component affects the range and time of flight. Understanding this division is key to solving problems that involve determining specific aspects of projectile motion, such as maximum height.
