Solar Cooker You want to make a solar hot dog cooker using...

Name: Problem 92, Chapter 9: Precalculus with Limits : A Graphing Approach
Uploaded: 2020-12-02T23:31:40-08:00
Duration: 2 min 13 s
Channel: Linda Hand

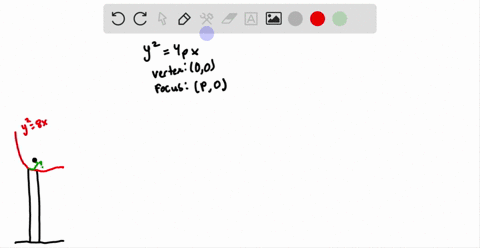

Description: Solar Cooker You want to make a solar hot dog cooker using aluminum foil-lined cardboard, shaped as a parabolic trough. The figure shows how to suspend the hot dog with a wire through the foci of the ends of the parabolic trough. The parabolic end pieces are 12 inches wide and 4 inches deep. How far from the bottom of the trough should the wire be inserted?

Solar Cooker You want to make a solar hot dog cooker using aluminum foil-lined cardboard, shaped as a parabolic trough. The figure shows how to suspend the hot dog with a wire through the foci of the ends of the parabolic trough. The parabolic end pieces are 12 inches wide and 4 inches deep. How far from the bottom of the trough should the wire be inserted?

Key Concepts

Parabolic Reflector

A parabolic reflector is a curved surface that reflects incoming parallel rays (such as sunlight) to a single focal point due to its geometric properties. This design is widely used to concentrate energy, enhancing the effectiveness of devices that rely on focused energy, like solar cookers or satellite dishes.

Focal Point in Parabolic Geometry

The focus of a parabola is the specific point at which all rays that are parallel to the parabola’s axis converge after being reflected. Determining the location of this point is essential for optimizing the concentration of energy, ensuring that the reflected rays meet at a single point for maximum effect.

Parabolic Equation and Focal Length

The standard equation of a parabola, often expressed in the form y = (1/(4f)) x^2, relates the x-coordinate of any point on the parabola to its y-coordinate, with f representing the focal length. This mathematical relationship is fundamental in determining key dimensions of a parabolic structure, such as its depth and width, and ultimately the position of the focus.

Solar Energy Concentration

Solar energy concentration uses reflective surfaces shaped as parabolic reflectors to gather and focus sunlight onto a receiver. By concentrating the solar energy onto a small area, devices like solar cookers can reach higher temperatures, enhancing their efficiency in heating or cooking applications.
