Solar Energy The amount of energy collected by a solar panel depends on the intensity of the sun's rays and the area of the panel. Let the vector I represent the intensity, in watts per square centimeter, having the direction of the sun's rays. Let the vector $\mathbf{A}$ represent the area, in square centimeters, whose direction is the orientation of a solar panel. See the figure. The total number of watts collected by the panel is given by $W=|\mathbf{I} \cdot \mathbf{A}|$. (IMAGE CANT COPY) Suppose that $\mathbf{I}=\langle-0.02,-0.01\rangle$ and $\mathbf{A}=\langle 300,400\rangle$. (a) Find $\|\mathbf{I}\|$ and $\|\mathbf{A}\|$, and interpret the meaning of each. (b) Compute $W$ and interpret its meaning. (c) If the solar panel is to collect the maximum number of watts, what must be true about $\mathbf{I}$ and $\mathbf{A}$ ?

Solar Energy The amount of energy collected by a solar panel depends on the intensity of the sun's rays and the area of the panel. Let the vector I represent the intensity, in watts per square centimeter, having the direction of the sun's rays. Let the vector $\mathbf{A}$ represent the area, in square centimeters, whose direction is the orientation of a solar panel. See the figure. The total number of watts collected by the panel is given by $W=|\mathbf{I} \cdot \mathbf{A}|$.
(IMAGE CANT COPY)

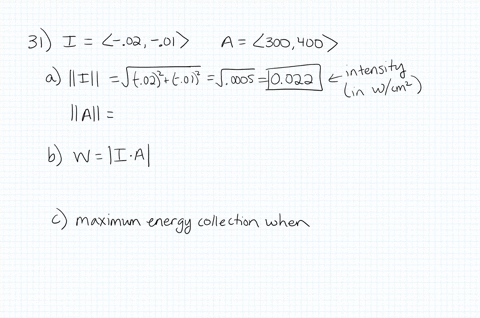

Suppose that $\mathbf{I}=\langle-0.02,-0.01\rangle$ and $\mathbf{A}=\langle 300,400\rangle$.
(a) Find $\|\mathbf{I}\|$ and $\|\mathbf{A}\|$, and interpret the meaning of each.
(b) Compute $W$ and interpret its meaning.
(c) If the solar panel is to collect the maximum number of watts, what must be true about $\mathbf{I}$ and $\mathbf{A}$ ?

Key Concepts

Dot Product

The dot product is an operation on two vectors that returns a scalar. It is computed by multiplying corresponding components of the vectors and summing the results. This scalar represents the product of the magnitudes of the two vectors and the cosine of the angle between them, and is used to determine the effective component of one vector in the direction of the other.

Vector Magnitude

The magnitude of a vector is a measure of its length or size, calculated as the square root of the sum of the squares of its components. In physics, it provides a quantitative value for quantities such as the intensity of sunlight or the area of a solar panel, indicating 'how much' of that quantity is present regardless of its direction.

Energy Flux Calculation

In the context of solar energy, the dot product is used to calculate the amount of energy collected by a solar panel. Multiplying the intensity vector (which represents the power per unit area from the sun) with the area vector (which represents the panel's surface area and its orientation) results in a scalar that quantifies the effective power intercepted by the panel.

Optimal Alignment

For a solar panel to collect the maximum amount of energy, its orientation must be such that the area vector is aligned with the intensity vector. When the vectors are parallel, the cosine of the angle between them is 1, leading to the maximum possible value of the dot product, and thereby maximizing the number of watts collected.
