Some cell walls in the human body have a layer of negative...

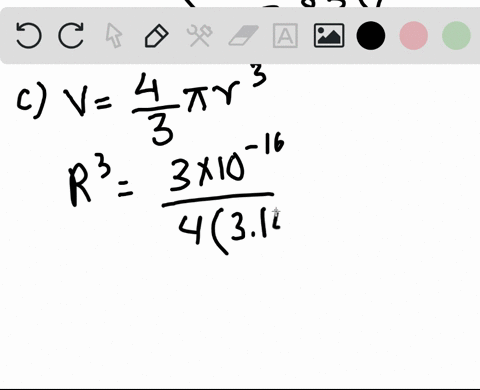

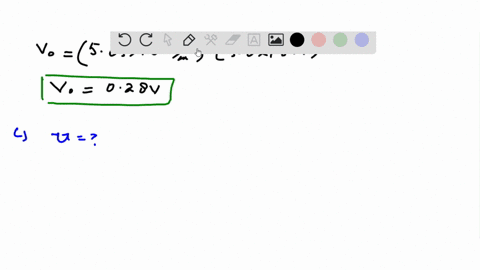

Some cell walls in the human body have a layer of negative charge on the inside surface. Suppose that the surface charge densities are $\pm 0.50 \times 10^{-3} \mathrm{C} / \mathrm{m}^{2},$ the cell wall is $5.0 \times 10^{-9} \mathrm{m}$ thick, and the cell wall material has a dielectric constant of $\kappa=5.4 .$ (a) Find the magnitude of the electric field in the wall between two charge layers. (b) Find the potential difference between the inside and the outside of the cell. Which is at higher potential? (c) A typical cell in the human body has volume $10^{-16} \mathrm{m}^{3}$ Estimate the total electrical field energy stored in the wall of a cell of this size when assuming that the cell is spherical. (Hint: Calculate the volume of the cell wall.)

Key Concepts

Potential Difference Calculation

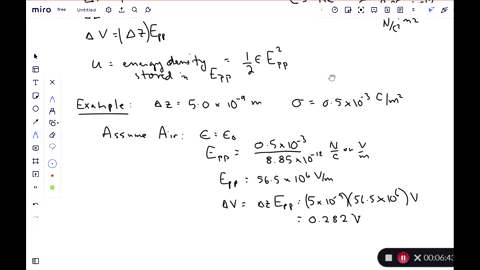

The potential difference between two points in an electric field is calculated by integrating the electric field over the distance between those points. In the context of capacitor-like systems, this integration simplifies to the product of the electric field and the separation distance when the field is uniform. This concept is foundational for understanding how energy is stored and transferred in electrical systems.

Electric Field Energy Density and Total Energy Storage

Electric fields store energy, and the energy density in an electric field is given by ½ ? E², where ? (the permittivity) includes effects from any dielectric medium present. By integrating this energy density over a specified volume, one can calculate the total energy stored in the electric field. This concept is critical when analyzing energy storage in systems such as capacitors or biological membranes.

Electric Field in a Capacitor-like Configuration

When two charged surfaces are arranged in parallel, the region between them can be modeled as a capacitor. The electric field in such a configuration is typically determined by the surface charge density and the medium’s permittivity. For a dielectric medium, the effective field is reduced by the dielectric constant, which directly influences the magnitude of the field in the gap or material between the charges.

Gauss's Law

Gauss's law relates the net electric flux through a closed surface to the charge enclosed by that surface. In problems involving uniformly charged planes or layers, Gauss's law is often used to derive the electric field in regions where symmetry simplifies the computation. It is a fundamental principle of electromagnetism that underpins the analysis of fields generated by continuous charge distributions.

Dielectric Materials

Dielectric materials are insulators that can be polarized by an electric field. They are characterized by their dielectric constant (also called relative permittivity), which quantifies how much the material reduces the effective electric field compared to vacuum. In capacitor-type problems, the presence of a dielectric alters the field, potential difference, and energy storage properties of the system.

Surface Charge Density

This concept refers to the amount of electric charge per unit area on a conductor or boundary. It is a key parameter in determining the electric field generated by charged surfaces, especially when using Gauss’s law or analyzing capacitor-like systems. In electrostatics, knowing the surface charge density is crucial to relate the distribution of charge to the fields produced in the surrounding space.
