Sometimes aluminum wiring has been used instead of copper...

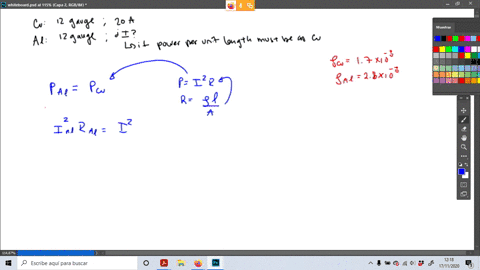

Sometimes aluminum wiring has been used instead of copper for economic reasons. According to the National Electrical Code, the maximum allowable current for 12 -gauge copper wire with rubber insulation is $20 \mathrm{~A}$. What should be the maximum allowable current in a 12-gauge aluminum wire if it is to have the same $I^{2} R$ loss per unit length as the copper wire?

Key Concepts

I²R Loss

I²R loss refers to the power dissipated as heat in a conductor due to its resistance, where the loss is proportional to the square of the current multiplied by the resistance (P = I²R). It is a key concept in electrical engineering because minimizing such losses is essential for efficient energy transmission and for ensuring that conductors do not overheat under load.

Electrical Resistivity

Electrical resistivity is a material property that quantifies how strongly a given material opposes the flow of electric current. Materials with lower resistivity, such as copper, allow current to flow more easily than materials with higher resistivity, such as aluminum. This concept is crucial when comparing different conductors for the same physical dimensions, as differences in resistivity directly affect the conductor's electrical performance and power losses.

Wire Gauge (AWG)

The American Wire Gauge (AWG) system standardizes the diameters of round, solid, nonferrous, electrically conducting wire. The gauge of a wire determines its cross-sectional area, which in turn influences its resistance and current-carrying capacity. Understanding gauge is essential when comparing wires made from different materials, as the same gauge does not necessarily imply the same electrical performance across different metals.

Scaling of Current with Resistance

When designing electrical circuits, the allowable current must be adjusted if the resistance of the conductor changes. To maintain an equivalent I²R loss, if the resistance increases—such as when switching from a copper conductor to an aluminum conductor of the same gauge—the current must be reduced accordingly. This scaling ensures that the heat generation per unit length remains consistent, preserving both performance and safety standards.
