Sound waves with frequency 3000 Hz and speed 343 m / s diffract through the rectangular opening

step 1 This problem covers the concept of diffraction and for the diffraction for the minima we can cal

Sound waves with frequency 3000 Hz and speed 343 m / s...

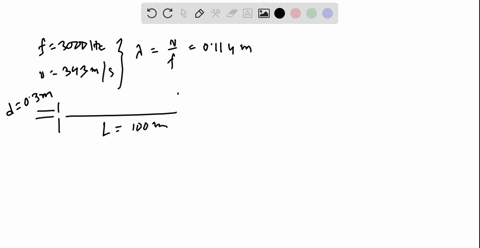

Sound waves with frequency $3000 \mathrm{~Hz}$ and speed 343 $\mathrm{m} / \mathrm{s}$ diffract through the rectangular opening of a speaker cabinet and into a large auditorium. The opening, which has a horizontal width of $30.0 \mathrm{~cm}$, faces a wall $100 \mathrm{~m}$ away (Fig. $37-28$ ). Where along that wall will a listener be at the first diffraction minimum and thus have difficulty hearing the sound? (Neglect reflections).

Key Concepts

Wavelength Calculation

The wavelength of a wave is a key parameter defined as the distance between consecutive points in phase (such as crest to crest) and is calculated by dividing the speed of the wave by its frequency. This concept is essential when transitioning from frequency information to spatial characteristics of a wave, which is necessary for analyzing diffraction phenomena.

Diffraction

Diffraction is the process by which waves bend around obstacles or spread when passing through small openings. It is a fundamental behavior observed in all types of waves, including sound, and is most pronounced when the size of the aperture is on the order of the wavelength. Understanding diffraction is crucial for predicting how sound or light will distribute energy in space after encountering an opening.

Single-Slit Diffraction

Single-slit diffraction refers to the pattern formed when waves pass through a narrow opening, leading to interference that produces regions of constructive and destructive interference. The condition for the appearance of minima in the diffraction pattern is given by sin? = m?/a, where m is an integer (not zero), ? is the wavelength, and a is the width of the slit. This concept is central to determining the location of intensity minima on a screen or wall.

Geometrical Interpretation of Diffraction Patterns

After determining the angular position of the diffraction minima using the single-slit diffraction formula, trigonometry is used to convert this angle into a physical distance on a wall or screen. This geometrical approach is important in practical applications, such as determining where a listener may experience reduced sound intensity due to the diffraction effects of a speaker cabinet opening.
