Static Equilibrium A tightrope walker located at a certain point deflects the rope as indicated

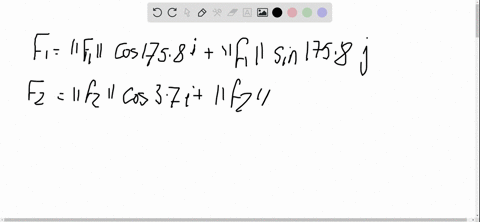

step 1 we have problem number 89 which is related to a static equilibrium it's given that a tight rope

Static Equilibrium A tightrope walker located at a certain...

Key Concepts

Free Body Diagram (FBD)

A free body diagram (FBD) is a graphical representation of an object and all the forces acting upon it. By isolating the tightrope walker and the rope segments in the problem, an FBD helps visualize the forces involved, such as gravitational force, tension forces, and their respective components. Using an FBD is essential to correctly set up the equations of equilibrium, allowing one to systematically solve for unknown quantities like the tension in the rope.

Tension in Ropes

Tension in ropes refers to the pulling force transmitted along the rope when it is subjected to forces from objects or loads. In the context of the tightrope walker, the tension in each segment of the rope must be sufficient to not only sustain the walker's weight (through the vertical components) but also ensure that the overall forces are balanced. The amount of tension is directly related to the weight and the geometry of the situation, such as the angle of deflection.

Force Decomposition

Force decomposition involves breaking down a force into its horizontal and vertical components to analyze its effect in different directions. In situations like the tightrope walker problem, this approach is crucial because the tension in the rope has both vertical components, which counteract the weight of the walker, and horizontal components, which must also be balanced. Decomposing the forces allows for the application of equilibrium equations along each axis.

Static Equilibrium

Static equilibrium is a state where an object or system is at rest and the sum of all forces and moments acting on it is zero. This concept ensures that for any structure or body, all the applied forces, including gravitational, tension, and any reaction forces, are balanced, resulting in no net acceleration. In problems involving a tightrope walker on a rope, static equilibrium guarantees that the deflecting forces and the weight of the walker are balanced by the tensions in the rope segments.
