Steam enters a turbine at 9 MPa, 600^∘ C, and 60 m / s and leaves at 20 kPa and 90 m / s with

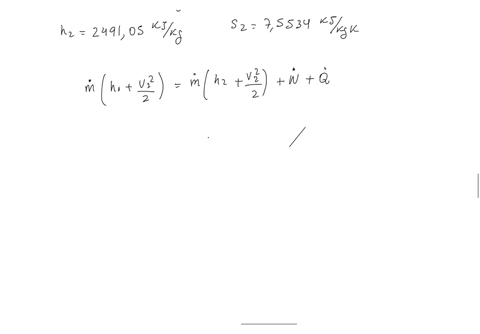

step 1 Hi everyone, the initial enthalpy and entropy at given pressure and temperature using David A6,

Steam enters a turbine at 9 MPa, 600^∘ C, and 60 m / s and...

Steam enters a turbine at $9 \mathrm{MPa}, 600^{\circ} \mathrm{C},$ and $60 \mathrm{~m} / \mathrm{s}$ and leaves at $20 \mathrm{kPa}$ and $90 \mathrm{~m} / \mathrm{s}$ with a moisture content of 5 percent. The turbine is not adequately insulated, and it estimated that heat is lost from the turbine at a rate of $220 \mathrm{~kW}$. The power output of the turbine is $4.5 \mathrm{MW}$. Assuming the surroundings to be at $25^{\circ} \mathrm{C}$, determine $(a)$ the reversible power output of the turbine, $(b)$ the exergy destroyed within the turbine, and $(c)$ the second-law efficiency of the turbine. ( $d$ ) Also, estimate the possible increase in the power output of the turbine if the turbine were perfectly insulated.

Key Concepts

Heat Transfer in Turbines

Heat transfer plays a significant role in the performance of turbines, especially when insulation is poor. Heat loss to the surroundings leads to additional exergy destruction since the waste heat, often at temperatures far below the system’s working conditions, represents a loss of high-quality energy. Understanding and minimizing such losses are crucial for enhancing the overall performance and efficiency of turbine systems.

Second Law Efficiency

This efficiency, also known as exergetic efficiency, is defined as the ratio of the actual work output to the maximum possible (reversible) work output as determined by the exergy analysis. It provides an indication of how effectively a system converts available energy into useful work, with a focus on the losses imposed by irreversibilities rather than just energy conservation.

Energy Balance for Open Systems

This concept involves applying the first law of thermodynamics to control volumes where mass and energy cross the system boundary. It accounts for the inlet and outlet streams’ enthalpy and kinetic energy as well as work output and heat transfer. In turbine problems, energy balance is used to quantify how energy is transformed from thermal and pressure energy into mechanical work, taking into account losses and changes in velocity or phase.

Exergy (Availability) Analysis

Exergy represents the maximum useful work that can be extracted from a system as it comes into equilibrium with its environment. It combines the first and second law of thermodynamics, accounting for both energy content and energy quality. In turbine applications, exergy analysis helps determine the potential work output if the process were carried out reversibly, and it is the basis for evaluating the performance limits of real devices.

Exergy Destruction

Exergy destruction measures the loss of available work due to irreversibilities in a process, such as friction, turbulence, and heat transfer across finite temperature differences. It quantifies the degradation in energy quality when a real process deviates from the ideal reversible process. In turbine problems, calculating exergy destruction helps in assessing how much of the potential work is lost because of non-idealities.
