Steam enters an adiabatic turbine at 8 MPa and 500^∘ C at a rate of 3 kg / s and leaves at 20 k

step 1 In this question we have to tell that the possibility of increase in the temperature of gas with

Steam enters an adiabatic turbine at 8 MPa and 500^∘ C at a...

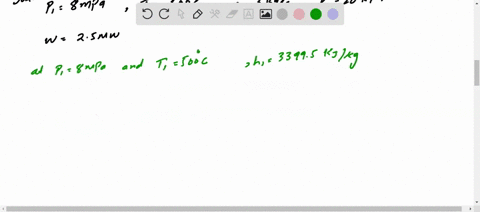

Steam enters an adiabatic turbine at $8 \mathrm{MPa}$ and $500^{\circ} \mathrm{C}$ at a rate of $3 \mathrm{~kg} / \mathrm{s}$ and leaves at $20 \mathrm{kPa}$. If the power output of the turbine is $2.5 \mathrm{MW}$, determine the temperature of the steam at the turbine exit. Neglect kinetic energy changes.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Adiabatic Process

An adiabatic process is one in which no heat is transferred to or from the system. In the context of turbines, this means that the energy changes in the steam are due solely to work interactions, simplifying the analysis by focusing only on the internal energy and enthalpy changes.

Steady-Flow Energy Equation

The steady-flow energy equation is used to analyze systems with continuous mass flow. For turbines, it relates the energy entering and leaving the control volume by balancing the changes in enthalpy with the work done, assuming that kinetic and potential energy changes are negligible.

Energy Balance in Turbines

In turbines, the energy balance is crucial as it connects the mass flow rate of the working fluid and its enthalpy drop to the power output. This concept is employed to determine unknown state properties at the turbine exit when the turbine work output and inlet conditions are given.

Steam Properties and Thermodynamic Tables

Accurate analysis of steam turbines requires knowledge of steam properties like temperature, pressure, and enthalpy. Engineers use thermodynamic tables or property relations to obtain these values at various states, which are essential for performing energy balance calculations in turbine systems.
