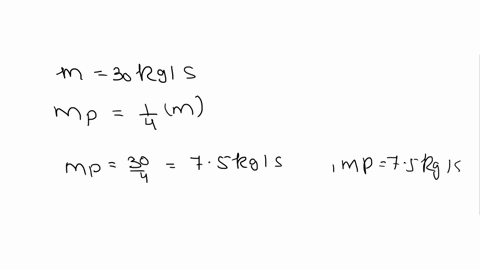

Steam enters the turbine of a cogeneration plant at 4 MPa and 500^∘ C. One-fourth of the steam i

step 1 So we have a system here. Now we have steam entering a turbine. And we have a boil. Let's see he

Steam enters the turbine of a cogeneration plant at 4 MPa...

Key Concepts

Utilization Factor

The utilization factor is a performance metric that assesses how effectively a plant uses its available energy resources. It typically represents the ratio of the useful energy output (either in electrical or combined forms) to the total energy input. In cogeneration systems, this factor is critical for evaluating the balance between power generation and heat recovery, thereby indicating the overall efficiency of the plant.

Cogeneration (Combined Heat and Power) Efficiency

Cogeneration, or combined heat and power (CHP), involves the simultaneous production of electricity and useful thermal energy from a single primary energy source. This integrated approach improves overall energy utilization by recovering and employing waste heat, making it essential to evaluate performance measures such as the utilization factor.

Isentropic Process

An isentropic process is one in which entropy remains constant, implying a reversible and adiabatic process without any internal losses. This idealization is often used in the analysis of turbines and pumps to simplify calculations of work output or work input, serving as a benchmark against which real, non-ideal performance is compared.

Energy and Mass Balances in Extraction Systems

In systems where a portion of the working fluid is extracted (such as in feedwater heaters or process heating), it is important to perform both mass and energy balance calculations. These balances ensure that the energy associated with each mass flow stream is accurately accounted for, allowing for proper integration of the extracted steam with remaining streams and precise determination of net work and system efficiency.

Rankine Cycle

The Rankine cycle is the theoretical thermodynamic cycle commonly used to model steam power plants. It consists of a series of processes—heat addition in a boiler, isentropic expansion in a turbine, heat rejection in a condenser, and isentropic compression in a pump—that depict how water is converted to steam and back to water, thereby facilitating the conversion of thermal energy into mechanical work. Understanding this cycle is crucial for analyzing and optimizing power generation systems.

Transcript

00:01 So we have a system here.

00:03 Now we have steam entering a turbine.

00:08 And we have a boil.

00:11 Let's see here.

00:11 Let me get pulled up the problem here so i can make sure i tell you right.

00:16 So yeah, we have a boiler here, a turbine, condenser pump, a mixing chamber, a second pump.

00:24 And then this is a process heater.

00:26 So this is kind of the new thing with the cogeneration plant.

00:29 So in this case, what you're doing is, let me see, let me actually put some energy flow.

00:35 So here we're getting taking energy out of the condenser, taking out of the turbine, and taking out of the process heater, and we're putting energy into the boiler.

00:51 So the idea here is that this energy is getting dumped into the environment, so it's being wasted.

00:57 This is mechanical energy that we're assuming to be converting into electrical energy probably, running a generator.

01:07 And then this is energy that we're, the heat energy that we're dumping into something where we want it.

01:14 So we're utilizing this to, you know, heat a building or heat, heat something.

01:19 So it's a cogeneration plant is a lot like a regenerative cycle or a reheat cycle where you're using something.

01:27 Of this heat, in that case you're using some of this heat to then help with the boiler.

01:32 But now you're using it for other purposes, whatever it might be.

01:36 So i don't know if they actually gave us a use for this.

01:42 Let's see, a string condensed and the tower produced and the utilization factor.

01:50 Now it basically just says that it doesn't tell us what we're using this process heater to heat.

01:56 But again, something here is being used.

02:00 So we're extracting some of the heat that we would normally be just dumping into a cold reservoir here.

02:08 So during the analysis, let's see here, we have seven megapascals and then we bleed some off at 1 .2 megapascals, and the exit of the turbine is 10 kilopascals.

02:20 You have a total mass flow rate into the turbine of 55 kilograms per second, and one quarter of it is bled off at 7 here.

02:28 So we have a quarter of it flowing off here and then three quarters of it going into the bound, finishing its way through the turbine and going into the condenser.

02:37 And then being pumped up to a pressure here to this pressure so that they can mix, and then finally being pumped up to the boiler pressure and then coming back around.

02:48 So this would be like a rate, some kind of radiator or heat exchanger here where you're actually using the heat.

02:56 So we can figure out, you know, kind of the normal process here.

03:02 Entropy coming into the pump, specific volume coming into the pump, work by the pump, okay, from this stuff and the change in pressure.

03:11 And then the entropy coming out of the pump, again, is this plus this.

03:16 And now into the second, into the mixing chamber, again, we're assuming that this is a condensed, three is a condensed.

03:26 Or is a saturated liquid.

03:30 And so we have the entropy for a saturated liquid at 1 .2 megapascals, this value.

03:36 So that's at 3.

03:38 Now if we look at the mixing chamber here, do a control volume around it and an energy balance on it.

03:46 We have the entropy flowing out and then the entropy flowing in.

03:50 And that must be, they must be equal.

03:54 And so now we see we have h3.

03:56 We have h4, no, we have h2 and h3.

04:00 M4, we know, is the same, or m4 is the same as m6, right? m2 is three quarters of m6, right, because that's coming through here.

04:15 And then m3 is one quarter of m6.

04:20 So, and we know m6.

04:21 So we know everything in here except for h4.

04:24 So we can find h4, and that's.

04:27 344 .3 kilojoules per kilogram.

04:30 Now let's look at this pump.

04:32 We know, again, we're assuming that we have a saturated liquid coming in here.

04:37 We know the enthalpy now.

04:39 So we can look, we can figure out the specific volume for a saturated liquid with this enthalpy.

04:46 And that turns out to be this value here.

04:49 So a little bit higher than here, obviously, because it's hotter.

04:53 And then we can figure out with this, we can end up changing pressure.

04:57 The pump, we can figure out what the work by this pump is.

05:01 And with this and the enthalpy at 4, we can figure out the anthope at 5 because it's just the sum of these two, because of an energy balance around the pump.

05:12 I should also, i guess i should put, to be more clear here, we're putting work into the pump also.

05:18 So that's kind of the energy flow, in, in, in, out, out...
