Steam expands in a turbine steadily at a rate of 18,000 kg / h, entering at 7 MPa and 600^∘ C an

step 1 Hi everyone, the power potential at inlet condition, at the inlet condition, XI will be mass flo

Steam expands in a turbine steadily at a rate of 18,000 kg /...

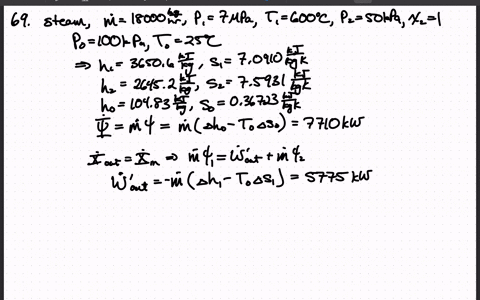

Steam expands in a turbine steadily at a rate of 18,000 $\mathrm{kg} / \mathrm{h}$, entering at $7 \mathrm{MPa}$ and $600^{\circ} \mathrm{C}$ and leaving at $50 \mathrm{kPa}$ as saturated vapor. Assuming the surroundings to be at $100 \mathrm{kPa}$ and $25^{\circ} \mathrm{C}$, determine $(a)$ the power potential of the steam at the inlet conditions and $(b)$ the power output of the turbine if there were no irreversibilities present.

Key Concepts

Irreversibility and ideal process considerations

This concept involves understanding the impact of irreversibilities such as friction, turbulence, and non-ideal fluid behavior on the performance of thermodynamic systems. When analyzing a turbine, assuming no irreversibilities (i.e., a reversible process) allows one to calculate the theoretical maximum work output (or exergy efficiency) of the system. This provides a benchmark for comparing actual performance and identifying potential improvements.

Reference environment (dead state)

The reference or dead state represents the conditions of the surroundings, typically characterized by a specified pressure and temperature. In exergy analysis, comparing the actual state of the system to the dead state allows calculation of the maximum work obtainable from the energy in the system. This concept is essential for assessing the theoretical turbine output in absence of irreversibilities.

Thermodynamic property evaluation

This concept involves using property data (such as steam tables) to determine key thermodynamic parameters like enthalpy and entropy at specified pressures and temperatures. It is crucial for calculating both the energy and exergy of steam as it undergoes expansion in a turbine, allowing one to determine work potentials and state changes accurately.

Exergy (availability) analysis

Exergy analysis quantifies the maximum usable work that can be extracted from a system as it comes into equilibrium with its environment. Unlike energy, exergy accounts for the irreversibilities in real processes by considering both the energy content and the quality of energy. For flowing systems, the exergy is determined using the difference between the actual state properties (enthalpy and entropy) and those at the environmental or dead state.

Steady-flow energy analysis

This concept involves applying the conservation of energy to systems where mass continuously flows through a control volume. In such applications, the energy balance is expressed in terms of mass flow rate multiplied by the specific enthalpy difference between inlet and outlet states. It is fundamental when calculating the power potential of fluids (such as steam) entering and leaving devices like turbines.
