Suppose that the two spherical shells of a pa spherical...

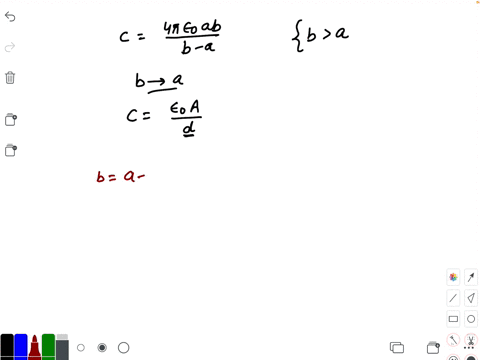

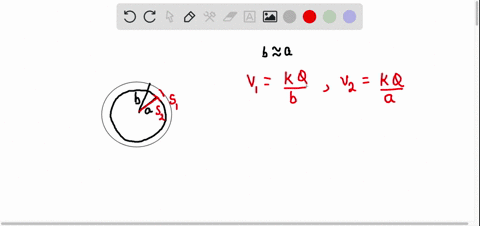

Suppose that the two spherical shells of a pa spherical capacitor have approximately equal radii. Under these conditions the device approximates a parallel-plate capacitor with $b-a=d$. Show that Eq. $28-17$ does indeed reduce to Eq. $28-9$ in this case.

Key Concepts

Capacitance

Capacitance is a measure of a capacitor's ability to store charge per unit potential difference. It depends on the geometry of the capacitor and the properties of the dielectric medium between the conductors. Understanding how capacitance varies with different configurations is fundamental in electromagnetism and circuit analysis.

Spherical Capacitor

A spherical capacitor consists of two concentric spherical shells, each acting as one electrode of the capacitor. The capacitance of such a system is derived from the integration of the radial electric field and depends on the radii of the inner and outer spheres. Analysis of spherical capacitors often involves solving problems with curved geometries and requires careful treatment when approximating limits.

Parallel-Plate Capacitor

The parallel-plate capacitor is a simplified model where two flat, parallel conducting plates are separated by a small distance, leading to a nearly uniform electric field between them. Its capacitance is typically given by the product of the area of the plates and the permittivity of the medium, divided by the separation distance. This model serves as an idealization that is easier to analyze compared to more complex geometries.

Limiting Approximations (Small Separation Limit)

When the radii of the spherical shells are nearly equal, the spherical capacitor can be approximated as a parallel-plate capacitor. In this limit, the curvature effects are minimal, and the separation between the shells behaves like the distance between the plates of a parallel-plate capacitor. This approximation involves mathematical techniques such as series expansion to simplify the capacitance expression from a spherical to a planar form.

Series Expansion and Approximation Techniques

Series expansion is a mathematical method used to approximate functions when a certain parameter is small. In the context of the spherical to parallel-plate capacitor transition, it allows one to simplify the exact expression for the capacitance of a spherical capacitor by expanding terms around a small parameter, such as the difference between the radii. This results in an expression that matches the established parallel-plate capacitor formula in the limit of small separation.
