Suppose the 3-μF capacitor in Fig. 24.10 a were removed and replaced by a different one, and tha

step 1 Hi, everybody. So what would the capsets of the replacement capser be? Okay. So these are the ca

Suppose the 3-μF capacitor in Fig. 24.10 a were removed and...

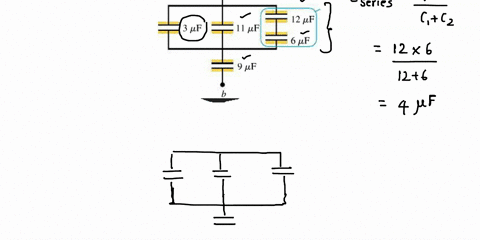

Suppose the $3-\mu \mathrm{F}$ capacitor in Fig. 24.10 $\mathrm{a}$ were removed and replaced by a
different one, and that this changed the equivalent capacitance between points $a$ and $b$ to 8$\mu \mathrm{F}$ . What would be the capacitance of the replacement capacitor?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Series Combination

When capacitors are connected in series, the same charge flows through each capacitor while the voltage divides across them. The equivalent capacitance of a series arrangement is found by taking the reciprocal of the sum of the reciprocals of the individual capacitances, typically resulting in a value that is less than any individual capacitor's capacitance.

Parallel Combination

In a parallel arrangement, capacitors are connected so that they all share the same voltage across their terminals. The total or equivalent capacitance is simply the sum of the individual capacitances, which increases the overall ability of the network to store charge.

Capacitors

Capacitors are electronic components that store electrical energy in an electric field. Their behavior is characterized by capacitance, which determines how much charge they store for a given voltage. They are used in a wide range of circuit applications including filtering, timing, and energy storage.

Equivalent Capacitance

Equivalent capacitance is the effective capacitance of a network of capacitors when they are combined using series and parallel connections. This concept allows complex circuits to be simplified into a single capacitor that has the same overall effect on the circuit’s voltage and charge distribution.
