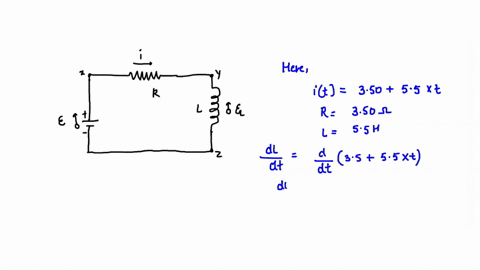

Suppose the emf of the battery in the circuit shown in Fig. $30-16$ varies with time $t$ so that the current is given by $i(t)=$ $3.0+5.0 t$ , where $i$ is in amperes and $t$ is in seconds. Take $R=4.0 \Omega$ and $L=6.0 \mathrm{H},$ and find an expression for the battery emf as a function of $t .($Hint$:$ Apply the loop rule.)

Suppose the emf of the battery in the circuit shown in
Fig. $30-16$ varies with time $t$ so that the current is given by $i(t)=$
$3.0+5.0 t$ , where $i$ is in amperes and $t$ is in seconds. Take $R=4.0 \Omega$
and $L=6.0 \mathrm{H},$ and find an expression for the battery emf as a
function of $t .($Hint$:$ Apply the loop rule.)

Key Concepts

Time Derivative in Circuit Analysis

The time derivative in circuit analysis, represented as di/dt, captures the rate at which current changes over time. This is crucial in circuits containing inductors because the voltage induced across an inductor is directly proportional to this rate of change. Calculating di/dt helps in determining the dynamic response of the circuit and in applying the loop rule to find expressions for quantities such as the battery emf.

RL Circuit

An RL circuit is one that contains a resistor (R) and an inductor (L) connected in series or parallel. The behavior of RL circuits is characterized by time-dependent current and voltage changes, particularly when the circuit is energized. The interplay between resistance, which dissipates energy, and inductance, which stores energy in a magnetic field, is crucial for understanding how the circuit responds to applied voltages and changes in current over time.

Kirchhoff's Voltage Law

Kirchhoff's Voltage Law (KVL), also known as the loop rule, states that the algebraic sum of all electrical potential differences around any closed loop in a circuit must equal zero. This concept ensures energy conservation within the loop and is used to analyze complex circuits by balancing voltage gains and drops, offering a systematic way to derive relationships among the different elements in the circuit.

Inductance

Inductance is a property of an inductor that quantifies its ability to oppose changes in current. It is defined by the relationship V_L = L (di/dt), where V_L is the induced voltage, L is the inductance, and di/dt is the rate of change of current. This opposition arises due to the magnetic field generated by the current, and the induced voltage is often referred to as the back electromotive force (emf) that acts to resist variations in current.
