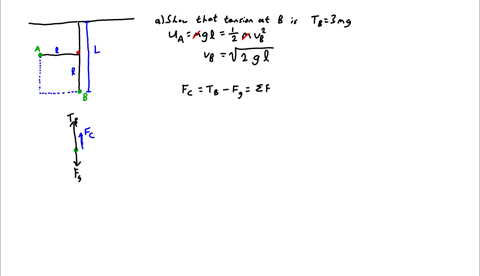

Tension at the Bottom A ball of mass $m$ is attached to a string of length $L$ and released from rest at the point $A$ in Figure $8-29 .$ (a) Show that the tension in the string when the ball reaches point $\mathrm{B}$ is $3 \mathrm{mg}$, independent of the length $l$. (b) Give a detailed physical explanation for the fact that the tension at point $\mathrm{B}$ is independent of the length $l.$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Conservation of Energy

This principle explains how the gravitational potential energy of the ball at the initial position is converted into kinetic energy as it swings down. By applying energy conservation between the starting point and the point of interest, one can determine the speed of the ball at that point, which is crucial for analyzing the forces in play.

Centripetal Force in Circular Motion

In circular motion, a net inward (centripetal) force is required to keep the object moving along a curved path. This concept is key to understanding how the tension in the string not only supports the weight of the ball but also provides the necessary centripetal force to sustain its circular motion.

Tension and Force Balance

The tension in the string is the combined result of needing to counteract the gravitational force acting on the ball and providing the centripetal force for its circular motion. Analyzing this force balance allows one to derive a tension that surprisingly comes out independent of the string length under specific conditions, illustrating the interplay between gravitational potential energy and the dynamics of circular motion.
