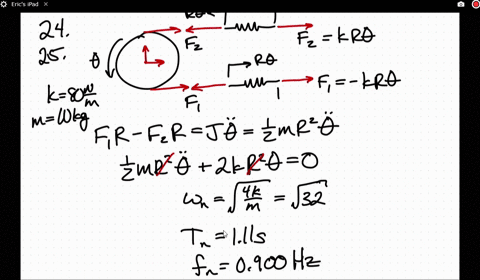

The 10 -kg disk is pin connected at its mass center. Determine the natural period of vibration of the disk if the springs have sufficient tension in them to prevent the cord from slipping on the disk as it oscillates. Hint: Assume that the initial stretch in each spring is $\delta_{O}$.

Key Concepts

Natural Period of Vibration

This concept defines the time required for a system to complete one full cycle of oscillation when disturbed from its equilibrium position. It is a fundamental parameter in the analysis of oscillatory systems and is typically derived from an expression that involves the effective inertial term (mass or moment of inertia) and the system’s stiffness or restoring force.

Moment of Inertia

Moment of inertia is a measure of an object's resistance to a change in its rotational motion about a specific axis. In systems involving rotational dynamics, such as a disk, the moment of inertia is analogous to mass in translational motion. It directly influences the dynamic response, including the natural period of oscillation when rotational motion is coupled with restoring forces.

Rolling Without Slipping (Non-slip Condition)

The rolling without slipping condition is a constraint that links translational and rotational motions. It ensures that the point of contact between a rotating object and a surface does not slip, which couples the object's angular displacement with its linear displacement. This condition is essential in correctly formulating the dynamics of systems where both translation and rotation are involved.

Hooke’s Law and Spring Mechanics

Hooke’s law states that the force exerted by a spring is directly proportional to its displacement from equilibrium. This linear relationship is a cornerstone in modeling restoring forces in oscillatory systems. When analyzing the natural period of a system, the spring stiffness (as defined by Hooke’s law) is used alongside inertial properties to determine the system's response to small perturbations.
