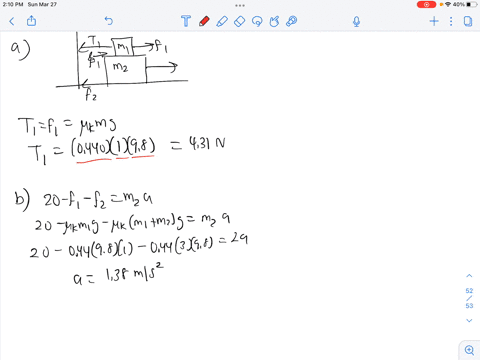

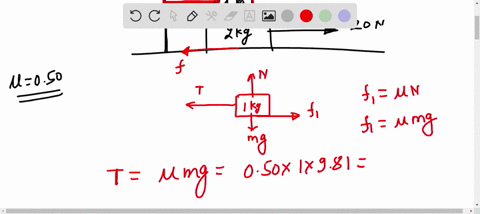

The $1.0 \mathrm{kg}$ block in FIGURE P7.32 is tied to the wall with a rope. It sits on top of the $2.0 \mathrm{kg}$ block. The lower block is pulled to the right with a tension force of $20 \mathrm{N}$. The coefficient of kinetic friction at both the lower and upper surfaces of the $2.0 \mathrm{kg}$ block is $\mu_{\mathrm{k}}=0.40.$ a. What is the tension in the rope holding the $1.0 \mathrm{kg}$ block to the wall? b. What is the acceleration of the $2.0 \mathrm{kg}$ block?

The $1.0 \mathrm{kg}$ block in FIGURE P7.32 is tied to the wall with a rope. It sits on top of the $2.0 \mathrm{kg}$ block. The lower block is pulled to the right with a tension force of $20 \mathrm{N}$. The coefficient of kinetic friction at both the lower and upper surfaces of the $2.0 \mathrm{kg}$ block is $\mu_{\mathrm{k}}=0.40.$
a. What is the tension in the rope holding the $1.0 \mathrm{kg}$ block to the wall?
b. What is the acceleration of the $2.0 \mathrm{kg}$ block?

Key Concepts

System Analysis of Multiple Bodies

When analyzing systems composed of multiple interacting bodies, it is important to consider both the individual forces acting on each body and the forces transmitted between them, such as friction at their contact surfaces and any connecting forces. This holistic approach helps in determining individual accelerations and internal forces like tension in connecting elements.

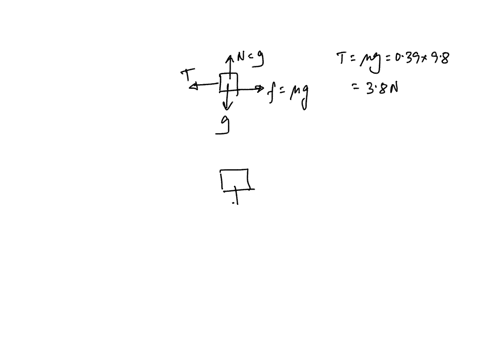

Free Body Diagram

A free body diagram is a graphical representation that shows all the forces acting on an isolated object. By including forces such as applied forces, friction, normal force, and tension, free body diagrams are indispensable tools for visualizing the problem and setting up the equations of motion.

Kinetic Friction

Kinetic friction is the resistive force that opposes the motion of an object sliding over a surface. It is determined by multiplying the coefficient of kinetic friction by the normal force. This concept is essential in problems involving moving bodies because it directly affects the net force and thus the acceleration of the objects.

Newton’s Second Law

Newton’s Second Law states that the net force acting on an object is equal to the mass of the object multiplied by its acceleration. This principle is fundamental for analyzing the dynamics of any system by setting up equations that relate applied forces, frictional forces, and tensions to the mass and acceleration of the objects involved.

Tension

Tension is the force transmitted through a rope, cable, or string when it is pulled tight by forces acting from either end. In dynamics problems, tension often acts to hold an object in equilibrium or to transmit forces between objects, making it a key factor in analyzing the interactions within a system.
