The 2014 - T 6 aluminum rod A C is reinforced with the firmly bonded A 992 steel tube B C . When

Step 1:u000AFirst, we need to calculate the deformation of the aluminum rod and the steel tube separ

The 2014 - T 6 aluminum rod A C is reinforced with the...

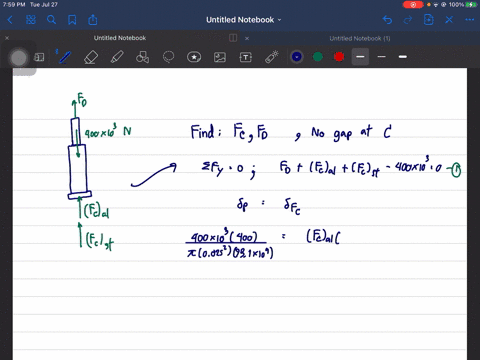

The 2014 - $\mathrm{T} 6$ aluminum rod $A C$ is reinforced with the firmly bonded $\mathrm{A} 992$ steel tube $B C .$ When no load is applied to the assembly, the gap between end $C$ and the rigid support is $0.5 \mathrm{mm} .$ Determine the support reactions when the axial force of $400 \mathrm{kN}$ is applied.

Key Concepts

Composite Action

Composite action refers to the behavior of two or more materials that are bonded together such that they act as a single structural element under load. In these systems, the individual material properties interact, and the load is shared among the components based on their stiffness and cross?sectional properties. This concept is central in engineering applications where different materials are combined to enhance overall performance.

Force Equilibrium

Force equilibrium is a fundamental principle in structural analysis stating that the sum of forces in any direction must be zero when a system is in static equilibrium. In the context of the composite member, the axial force applied must be balanced by the reactions at the supports, ensuring the overall system remains in equilibrium under the external load.

Deformation Compatibility

Deformation compatibility requires that materials bonded together deform together in a coordinated manner; there can be no relative displacement at the interface when perfect bonding is assumed. In a composite rod, this means that both materials experience the same axial displacement at the interface, which is critical for accurately determining load distribution and resulting stresses.

Axial Stiffness

Axial stiffness is determined by the product of the modulus of elasticity and the cross?sectional area (E*A) of a material. In a composite structure, each component’s stiffness influences its share of the applied load. The overall behavior is governed by the relative stiffnesses of the materials, making it important to account for differences in elasticity when calculating the load sharing.

Initial Gaps and Contact Conditions

Initial gaps in structural systems, such as the 0.5 mm gap mentioned, can significantly influence load transfer and reaction forces. When a load is applied, the gap must first be closed before the rigid support engages, altering the deformation and stress distribution within the composite member. Recognizing and accounting for these initial conditions is key to obtaining accurate support reaction assessments.
