The 5-m-wide wall is in the form of a parabola. If the depth of the water is h=4 m, determine t

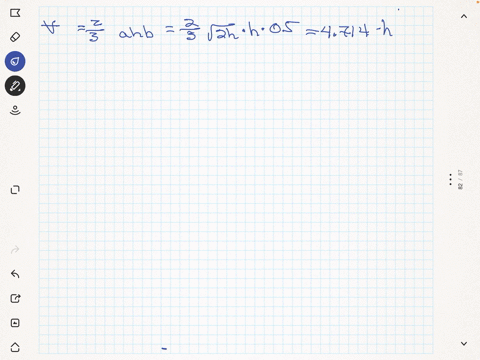

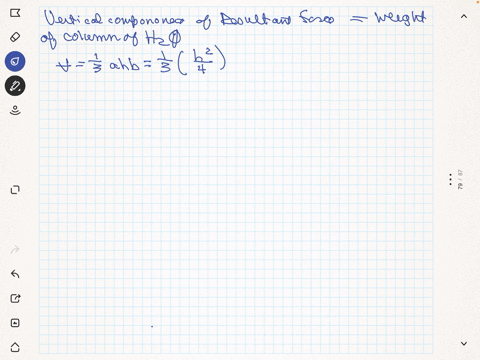

step 1 okay so here the horizontal force on the wall is equal to force on vertical so we have projected

The 5-m-wide wall is in the form of a parabola. If the depth...

Key Concepts

Center of Pressure

The center of pressure is the point of application of the resultant force on a submerged surface, where the total moment due to the distributed pressure can be considered to act. It is typically located below the centroid of the surface because the pressure increases with depth, shifting the balance of forces towards the lower portions of the surface.

Geometric Considerations in Fluid Statics

When dealing with surfaces of non-uniform shape, such as a parabolic wall, it is necessary to account for the geometry in the calculations. The shape affects both the area over which pressure is integrated and the distribution of moments, making it crucial to properly model the surface in order to accurately determine the magnitude and point of application of the resultant force.

Hydrostatic Pressure

Hydrostatic pressure is the pressure exerted by a fluid at rest, increasing linearly with depth according to the formula p = ?gh. This concept is essential for understanding how pressure varies over submerged surfaces, as it provides the foundation for calculating forces on walls and structures in contact with a fluid. It is based on the weight of the fluid above a given point and is independent of the shape of the container or object.

Resultant Force on a Submerged Surface

The resultant hydrostatic force on a submerged surface is obtained by integrating the variable pressure over the entire area of the surface. This integration accounts for the fact that pressure increases with depth, summing up the contributions of each differential element of area to yield the total force acting on the structure.
