The A-36 steel drill shaft of an oil well extends 12000 ft into the ground. Assuming that the pi

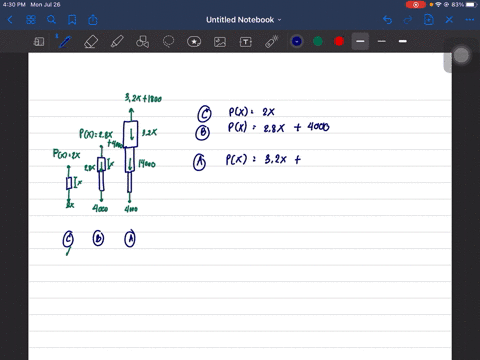

step 1 Now the load acting on point C is caused due to the weight of the pipe section CD. So now let us

The A-36 steel drill shaft of an oil well extends 12000 ft...

The A-36 steel drill shaft of an oil well extends $12000 \mathrm{ft}$ into the ground. Assuming that the pipe used to drill the well is suspended freely from the derrick at $A$, determine the maximum average normal stress in each pipe string and the elongation of its end $D$ with respect to the fixed end at $A .$ The shaft consists of three different sizes of pipe, $A B$ $B C,$ and $C D,$ each having the length, weight per unit length, and cross-sectional area indicated.

Key Concepts

Composite Structural Analysis

When dealing with structures composed of multiple segments with different geometrical and material properties, each segment must be analyzed separately for stress and deformation. The overall behavior of the composite system is determined by ensuring continuity and equilibrium at the interfaces between segments, allowing for an accurate prediction of the structural response.

Axial Deformation and Elongation

Axial deformation refers to the elongation or shortening of a member under axial load. According to Hooke’s law, this deformation is proportional to the applied load, the length of the component, and inversely proportional to the cross-sectional area and the material's Young’s modulus, providing a way to predict the extension or contraction under stress.

Axial (Normal) Stress

Axial stress (or normal stress) is the load per unit area acting along the length of a member. It is essential in determining whether a structural component can withstand the applied load without yielding or failing, and is calculated by dividing the axial force by the cross-sectional area.

Self-weight Induced Axial Load

In suspended vertical structures, the weight of the structure itself generates an axial load that increases with depth. This cumulative effect of the self-weight must be accounted for when calculating stresses and deformations, as each segment supports the weight of all components below it.
