Question
The ac bridge in Fig. 9.37 is balanced when $R_{1}=400 \Omega, R_{2}=600 \Omega, R_{3}=1.2 \mathrm{k} \Omega,$ and$C_{2}=0.3 \mu \mathrm{F} .$ Find $R_{x}$ and $C_{x}$
Step 1
In this case, we have $Z_{1}=R_{1}$, $Z_{2}=R_{2}+1/j\omega C_{2}$, $Z_{3}=R_{3}$, and $Z_{4}=R_{x}+1/j\omega C_{x}$. Show more…
Show all steps
Your feedback will help us improve your experience
Ramesh Singh and 60 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
When an unknown resistance $R_{\mathrm{x}}$ is placed in a Wheatstone bridge, it is possible to balance the bridge by adjusting $R_{3}$ to be 2500$\Omega .$ What is $R_{\mathrm{x}}$ if $\frac{R_{2}}{R_{1}}=0.625$ $?$
In a Wheatstone's network, $P=2 \Omega ; Q=2 \Omega ; R=2 \Omega$ and $S=3 \Omega$. the resistance with which $S$ is to be shunted in order that the bridge may be balanced is (a) $1 \Omega$ (b) $2 \Omega$ (c) $4 \Omega$ (d) $6 \Omega$

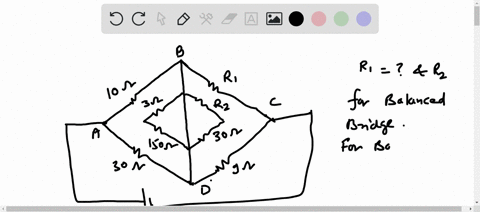

In the whetstone bridge shown below, in order to balance the bridge we must have (A) $R_{1}=3 \Omega, R_{2}=3 \Omega$ (B) $\mathrm{R}_{1}=6 \Omega, \mathrm{R}_{2}=15 \Omega$ (C) $\mathrm{R}_{1}=1.5 \Omega, \mathrm{R}_{2}=$ any finite value (D) $\mathrm{R}_{1}=3 \Omega, \mathrm{R}_{2}=$ any finite value
