The air conditioner in a car uses R-134 a, and the...

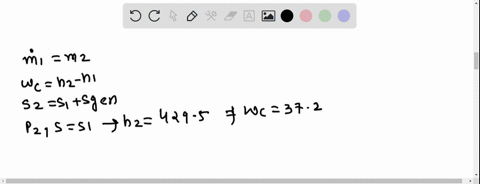

The air conditioner in a car uses $R-134 a$, and the compressor power input is $1.5 \mathrm{kW}$, bringing the R-134a from 201.7 kPa to 1200 kPa by compression. The cold space is a heat exchanger that cools $30^{\circ} \mathrm{C}$ atmospheric air from the outside down to $10^{\circ} \mathrm{C}$ and blows it into the car. What is the mass flow rate of the $\mathrm{R}-134 \mathrm{a}$, and what is the low-temperature heat-transfer rate? What is the mass flow rate of air at $10^{\circ} \mathrm{C}$ ?

Key Concepts

Refrigeration Cycle

This concept refers to the series of thermodynamic processes that a refrigerant undergoes in a cooling system, typically involving compression, condensation, expansion, and evaporation. Understanding the cycle is crucial, as it explains how energy is moved from one part of the system to another and forms the basis for calculating mass flow rates and heat transfer rates.

Compressor Energy Balance

The compressor's role is to increase the pressure and thus the enthalpy of the refrigerant. By relating the work input (i.e., compressor power) to the change in enthalpy, one can determine the refrigerant’s mass flow rate. This analysis is foundational in understanding how energy is input and converted within the refrigeration system.

Thermodynamic Properties of Refrigerants

Determining the properties of a refrigerant (such as R-134a) at various pressures and temperatures is essential for performing energy balance calculations. These properties include enthalpy, pressure, and temperature, and they allow for the correct evaluation of the refrigerant’s performance during compression and heat exchange processes.

Heat Exchanger Analysis

In the context of refrigeration and air conditioning, a heat exchanger transfers thermal energy between fluids. Analyzing the exchanger involves calculating the heat transfer rate based on the refrigerant’s enthalpy change as it absorbs heat from or rejects heat to another medium. This concept is critical to assessing the cooling capacity of the system.

Air Flow Rate Determination

This concept involves using the energy balance on the air stream. By relating the heat removed from the air to its specific heat and temperature change, one can determine the required mass flow rate of the air. This is key to ensuring that the cooling provided by the system meets the needs of the conditioned space.
